SD-WAN Platform

One SD-WAN platform, from branch to data center

One platform runs the whole portfolio — from all-in-one branch and edge appliances at the spokes to high-capacity gateways at the hub — converging SD-WAN, firewall, VPN, Wi-Fi, and IoT under a single cloud. High-performance and cost-effective, with no hidden software licensing.

Talk to Us See the models

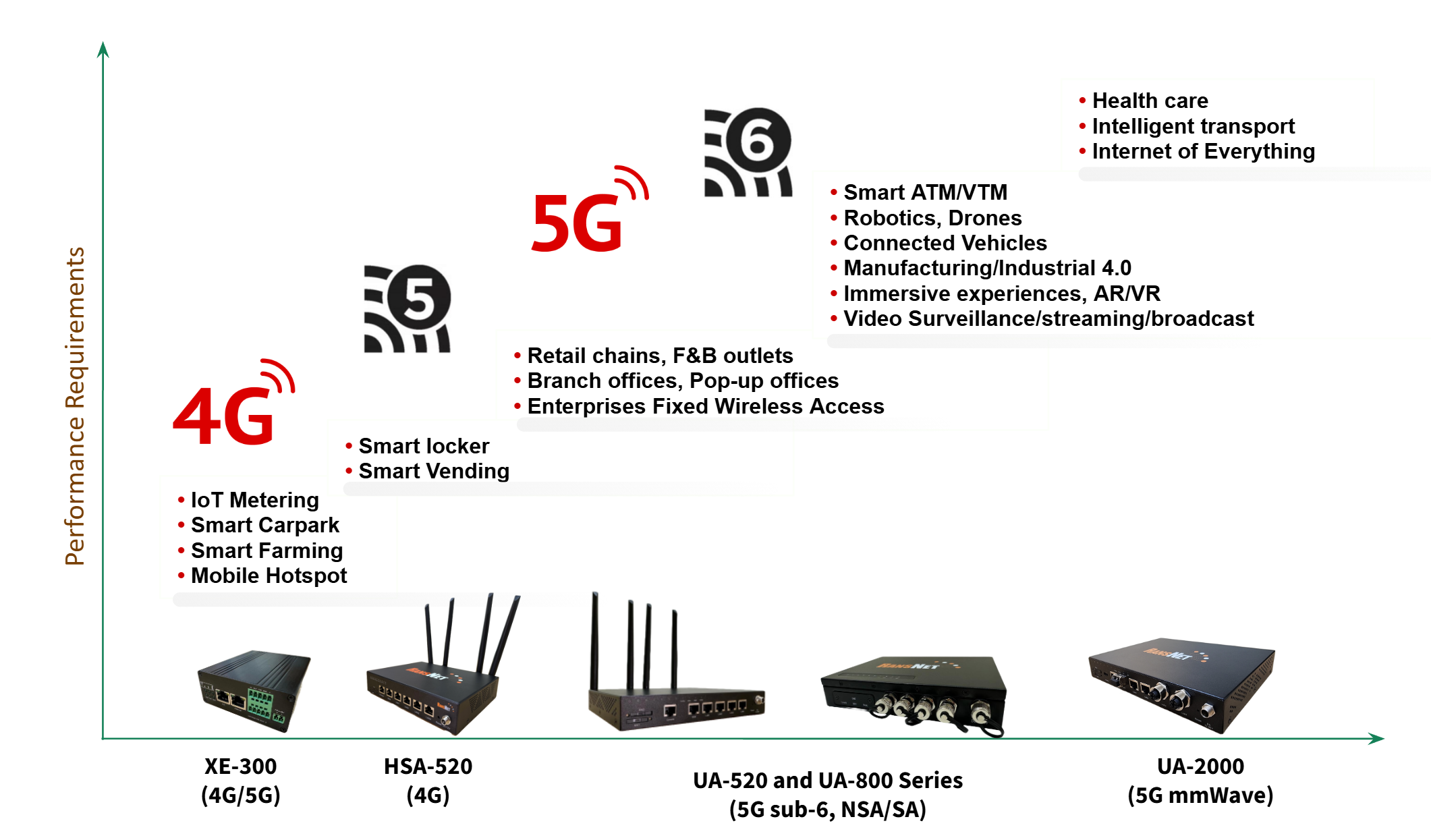

RansNet SD-Branch product family — UA-520, HSA-520, UA-800, and XE-300 branch routers

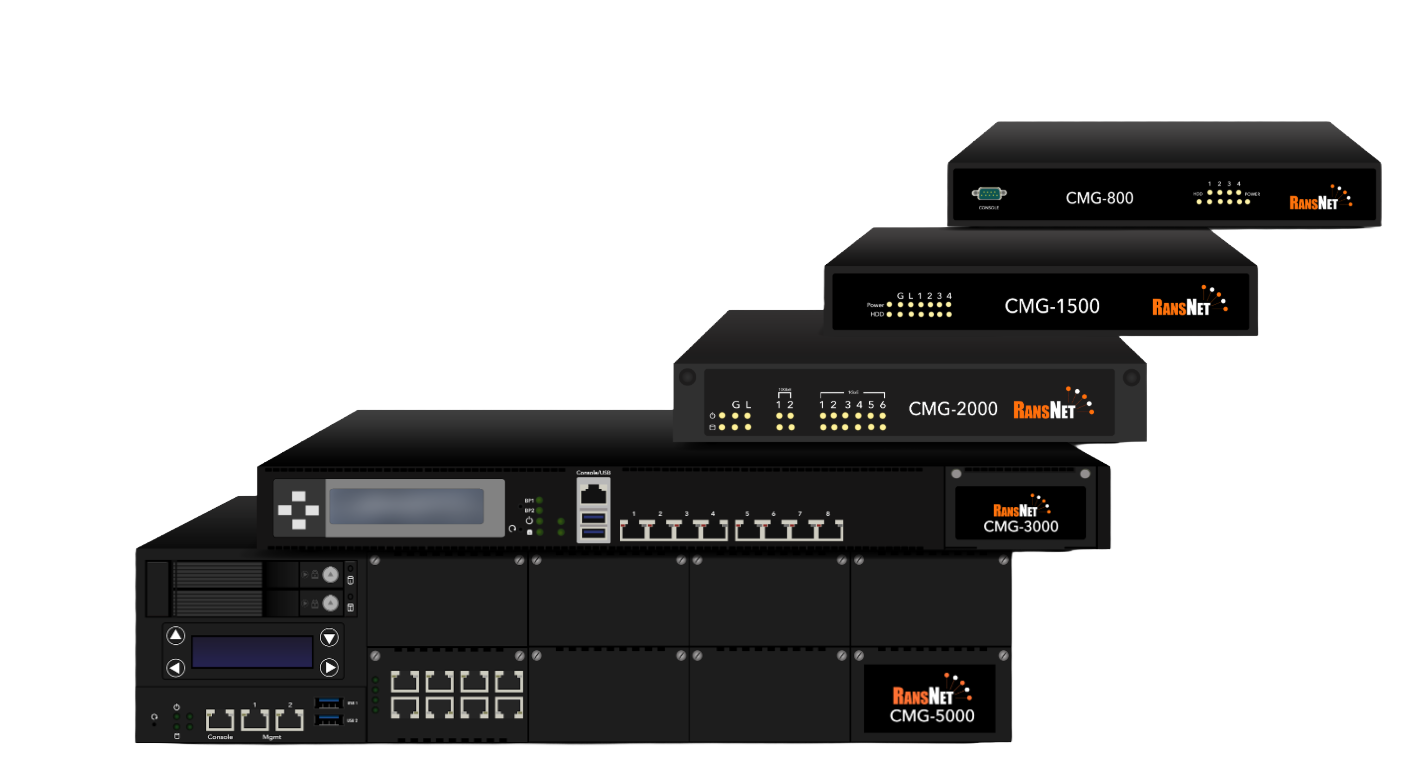

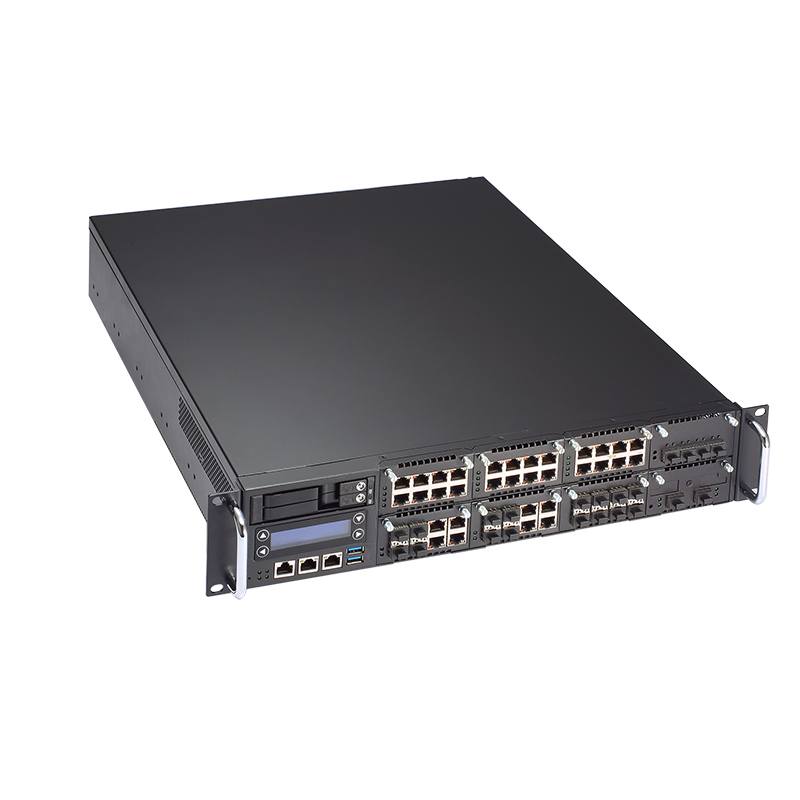

RansNet CMG SD-WAN gateway — the data-center hub of the platform

Capabilities

One platform. The whole network stack.

From connectivity and security to Wi-Fi and IoT, the platform replaces a rack of separate boxes — the same capabilities across branch appliances and data-center gateways, all configured and monitored centrally through mfusion.

All-in-one Appliance

Router, stateful firewall, VPN, Wi-Fi and cellular converged into one appliance — fewer boxes, vendors, and licenses at every site.

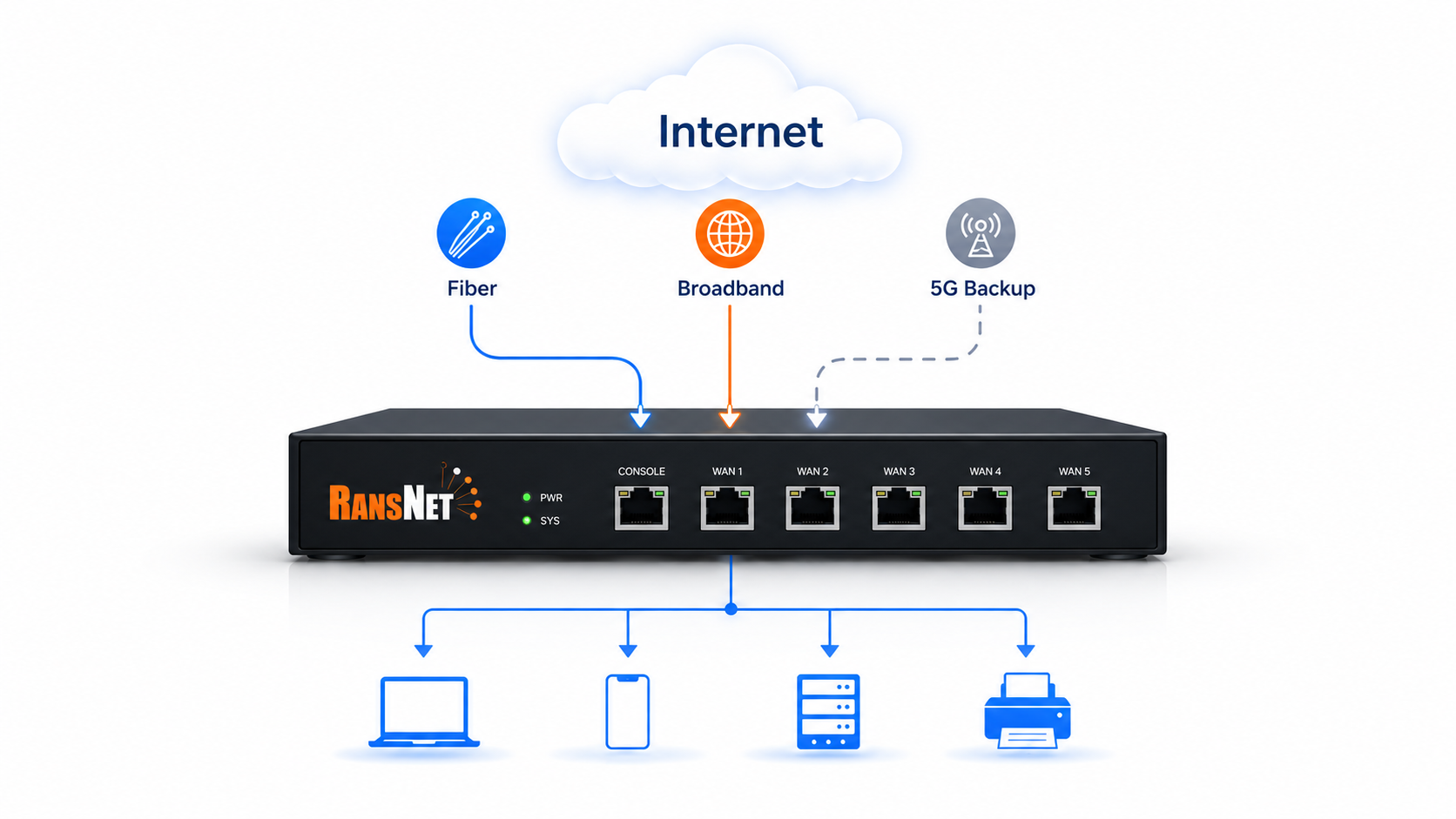

Multi-WAN, bonding & failover

Aggregate fiber, broadband, 4G/5G and satellite with WAN/VPN bonding for more bandwidth, plus fast failover — sub-second detection in suitable deployments — on packet loss, latency, or jitter.

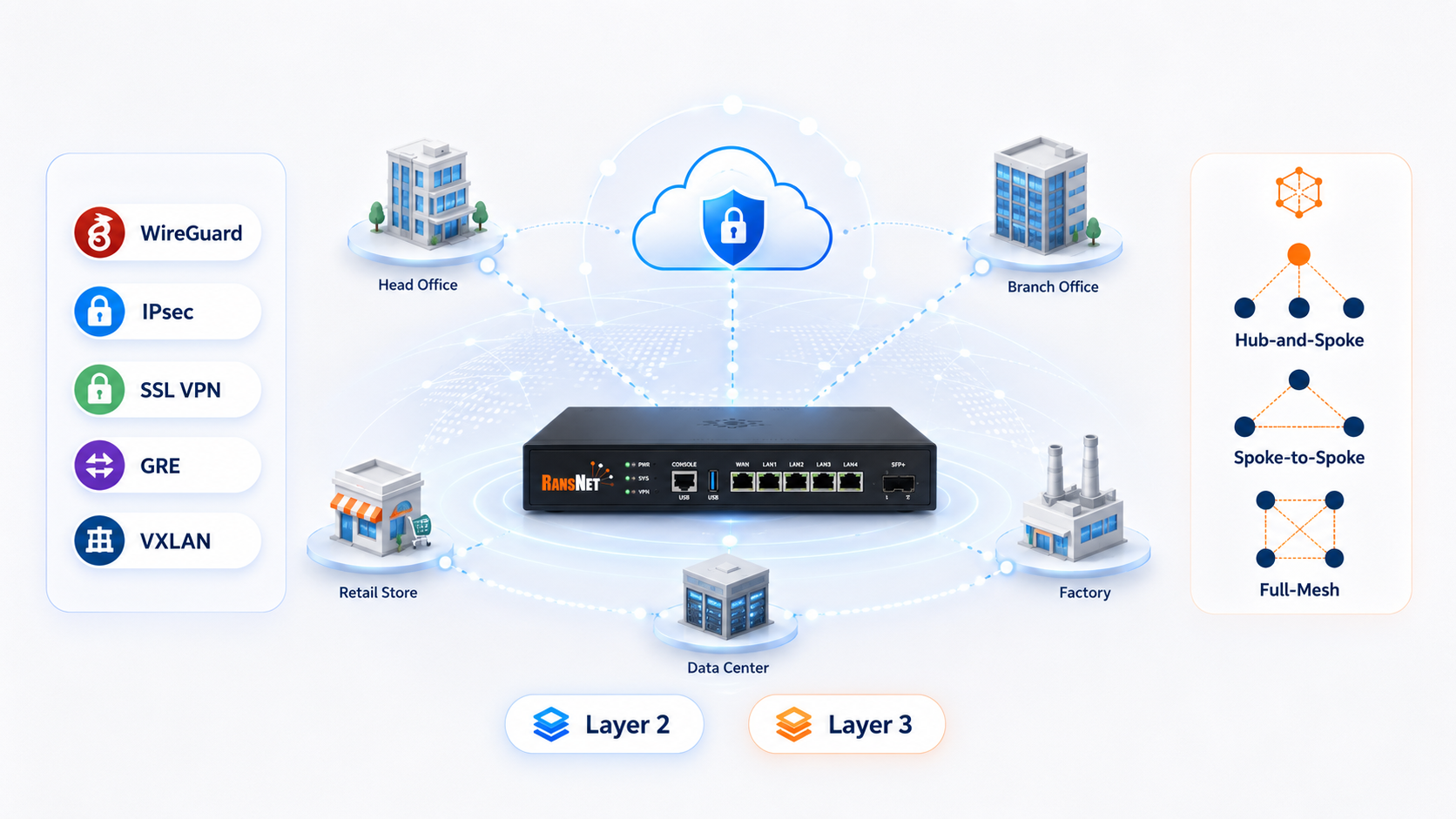

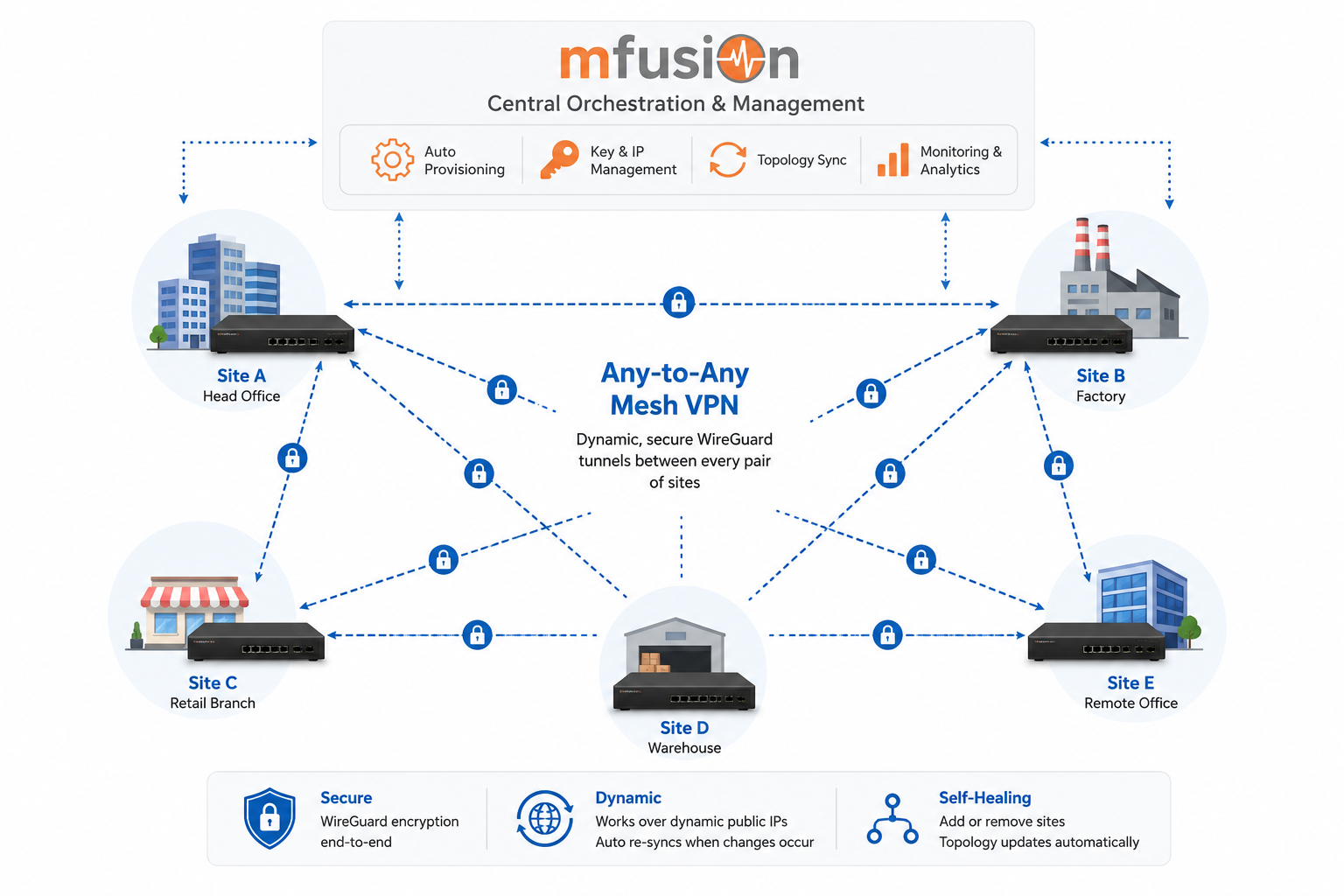

VPN overlays

IPSec, WireGuard, GRE, L2TPv3, SSL VPN and VXLAN tunnels in hub-and-spoke or mesh — with proven interoperability to Fortinet, Meraki, and Cisco.

Traffic steering (PBR)

Route by source, application, or port — break SaaS out locally while backhauling sensitive traffic through the tunnel.

Traffic shaping (QoS)

Class-based bandwidth allocation and per-IP limits protect latency-sensitive apps and stop any user monopolizing a shared link.

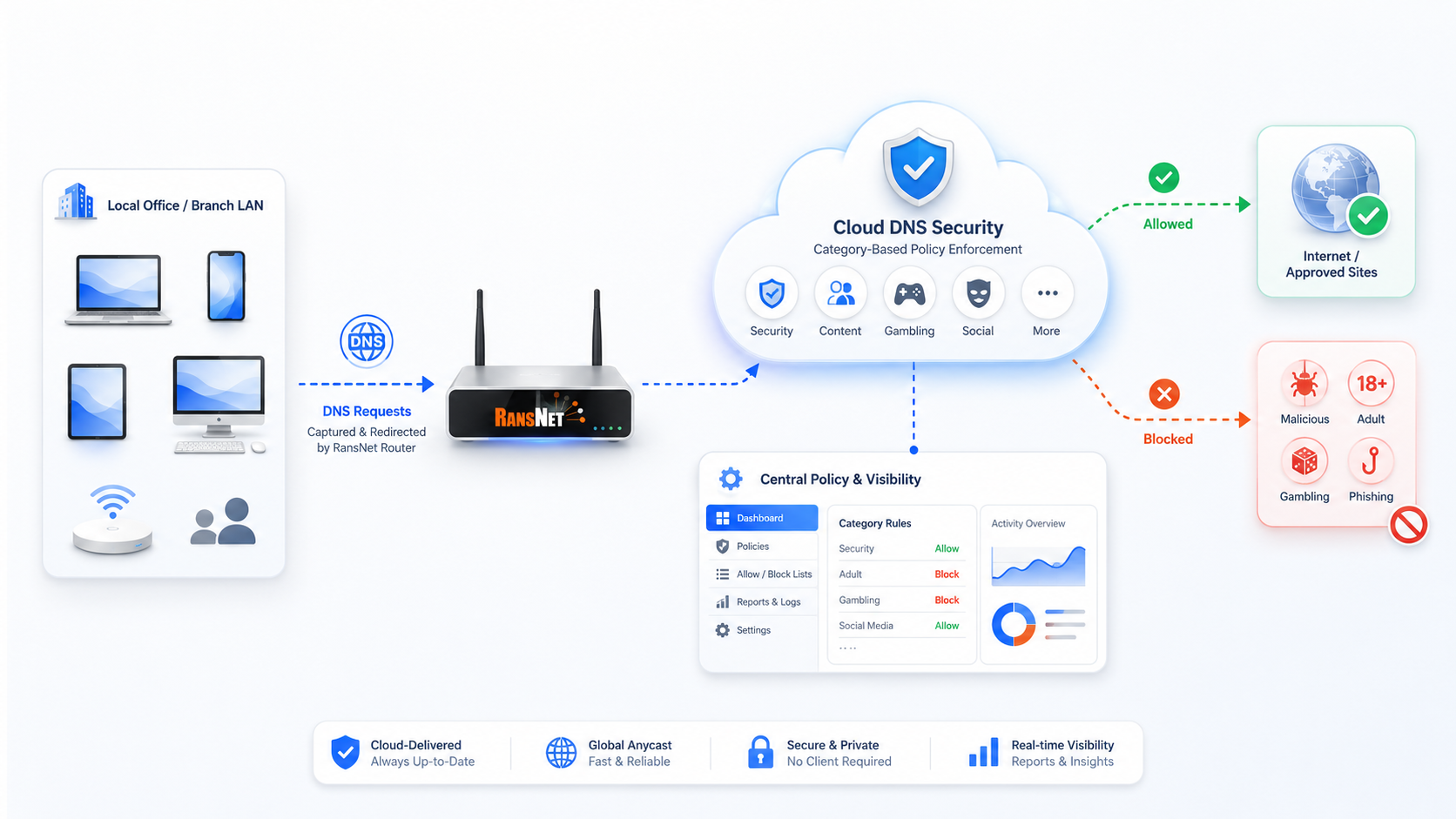

Application & web filtering

Block by application, domain, or category — firewall objects, DNS filtering, and cloud category lists, layered for bypass resistance.

Segmentation & multi-tenancy

Split each SSID, port, or user group into its own VLAN with dedicated firewall and QoS — and isolate whole tenants end-to-end with VRF over the SD-WAN overlay.

Layer-2 SD-WAN

Extend VLANs and broadcast/OT traffic across sites with VXLAN Layer-2 tunnels — for VM mobility, legacy protocols, and industrial networks.

Native 4G/5G

Integrated dual-SIM 4G/5G — global module options including NSA/SA and mmWave (by model / region) with carrier aggregation. Automatic backup, or the primary link where fiber can’t reach.

Wi-Fi 6 & guest portal

Built-in Wi-Fi 6 with captive portal, RADIUS, and per-user policies. Pair with the HSG gateway and cloud ad manager to turn guest Wi-Fi into a revenue stream.

IoT integration

Built-in MQTT broker collects sensor data at the edge and forwards it to mfusion or your cloud — with store-and-forward through outages, plus Bluetooth and Z-Wave on select models.

Firewall & access control

Zone-based stateful firewall — NAT, port forwarding, and reusable objects — with Network Access Control, so security is built into every site, not bolted on.

Secure by default

Devices open an outbound-only TLS session to mfusion over a secure API — no inbound ports or services are exposed. Everything stays locked down until a service is explicitly enabled, each safeguarded separately.

Central management

Zero-touch provisioning, template-based config, monitoring, and fleet-wide firmware — every site managed from one mfusion console.

Cloud or on-premises

Run mfusion in the RansNet cloud or fully on-premises — the same orchestration and control, with data kept in your own environment when data-sovereignty or compliance demands it.

Explore the capabilities in the docs →

Connectivity

Optimized for wired & wireless WAN (5G/4G)

Every branch and edge model embeds a dedicated next-generation 4G or 5G/NR modem — with its own chipset and processing power — for reliable, high-speed cellular WAN over a direct SIM, with global 4G/5G module options — NSA/SA and mmWave variants by model and region.

Dedicated cellular modem with carrier aggregation for maximum speed (UA-800: 4G/LTE, 5G-NSA or 5G-SA)
Every Gigabit Ethernet port configurable as WAN or LAN
WAN bonding aggregates wired + wireless bandwidth across links
Fast failover — sub-second detection in suitable deployments — on packet loss, latency, or jitter

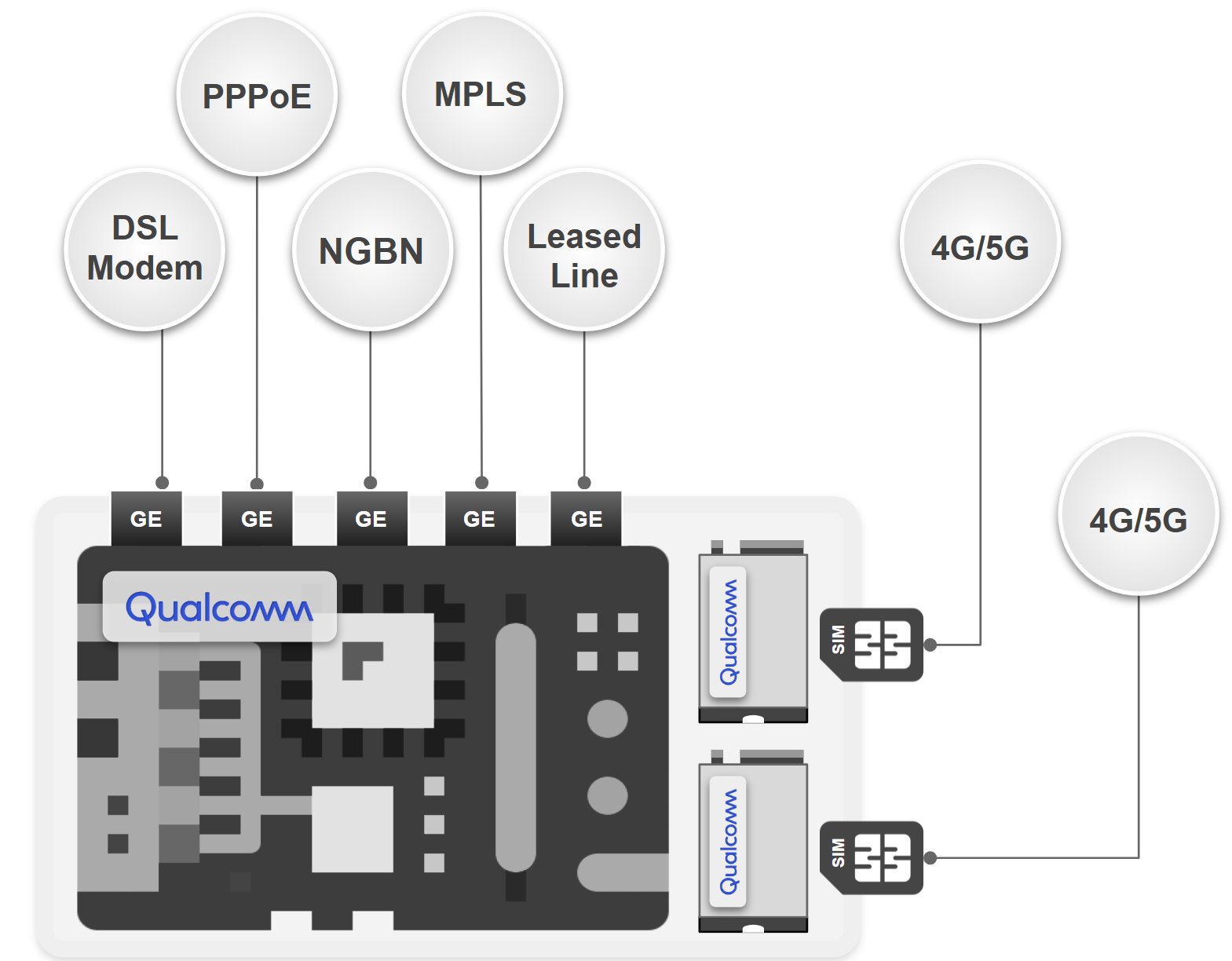

RansNet SD-Branch wired and wireless WAN — dedicated dual-SIM 4G/5G modems aggregating fiber, broadband, leased line, and cellular links

Complete feature set

Enterprise features, no hidden licensing

Everything below is included across the platform — from branch appliances to gateways — one all-in-one package, centrally managed by mfusion.

Connectivity & Routing

Multi-WAN & VPN bonding, fast failover
Static routing & Policy-Based Routing
Dynamic routing — RIP, OSPF, BGP
IPv4 & IPv6
DHCP client & server
VLAN/trunking (802.1q), bridging (802.1d)
High availability (VRRP)

VPN & Overlay

IPSec, WireGuard, GRE, L2TPv3
SSL VPN
VXLAN Layer-2 & Layer-3
VRF over SD-WAN

Security

Firewall — NAT, SNAT, DNAT, port forwarding
Network Access Control (NAC)
Application / URL / DNS filtering
QoS bandwidth control

Wi-Fi & Guest

Wi-Fi 6, multi-SSID with per-SSID VLAN
External HotSpot portal (HSG)
Wi-Fi monetization & cloud ad manager

IoT & Mobility

Built-in MQTT broker
Bluetooth & Z-Wave (select models)
GNSS/GPS & ignition sensing (mobility models)

Management

mfusion orchestration (SD-WAN, Wi-Fi, LAN, NAC, portal)
Zero-touch provisioning
Cloud monitoring, alerting & reporting
Online firmware patching
SNMP, Syslog, tcpdump, iperf3, OpenFlow

Observability

See every flow, across every site

You can't manage what you can't see. The platform exports NetFlow from every appliance to a built-in collector, turning raw traffic into per-application and per-user analytics in mfusion — no separate probes or SPAN taps.

Real-time per-application and per-user traffic breakdowns
Spot bottlenecks, heavy talkers, and anomalies at a glance
NetFlow export plus an on-box collector — no extra hardware
Fleet-wide dashboards and history in a single pane of glass

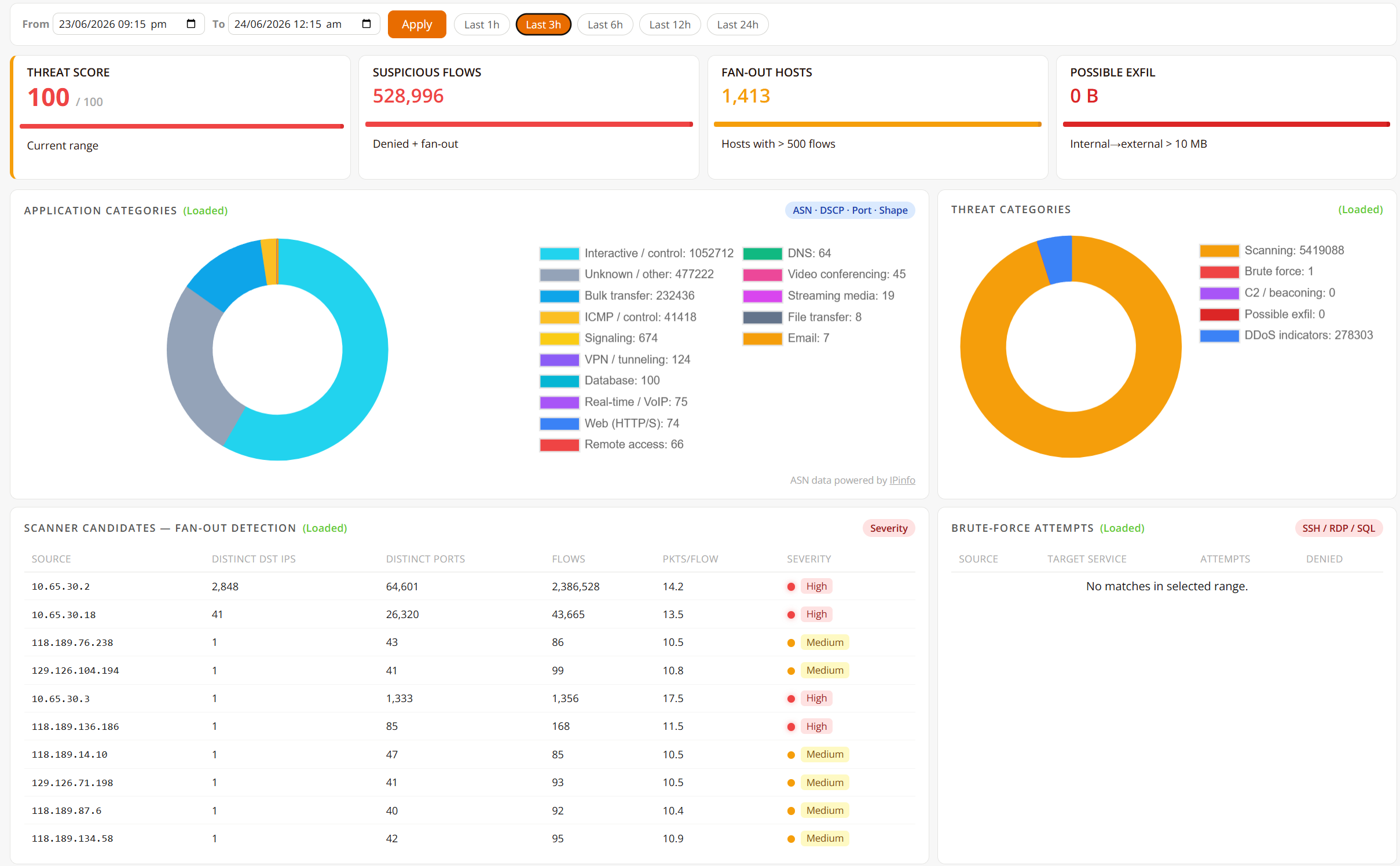

RansNet NetFlow analytics in mfusion — per-application and per-user traffic visibility across sites

Reliability

UDP Booster — throughput on lossy links

On lossy 4G/5G and satellite links, every dropped packet forces TCP to back off. UDP Booster wraps traffic in a Reed-Solomon FEC tunnel that rebuilds lost packets at the far end — no waiting for retransmission.

Cuts effective packet loss to a fraction of a percent
Steadier latency for VoIP, video, and remote desktop
Rides the VPN overlay — accelerates all traffic (TCP, UDP, ICMP)
Ideal for maritime, vehicle, and remote sites

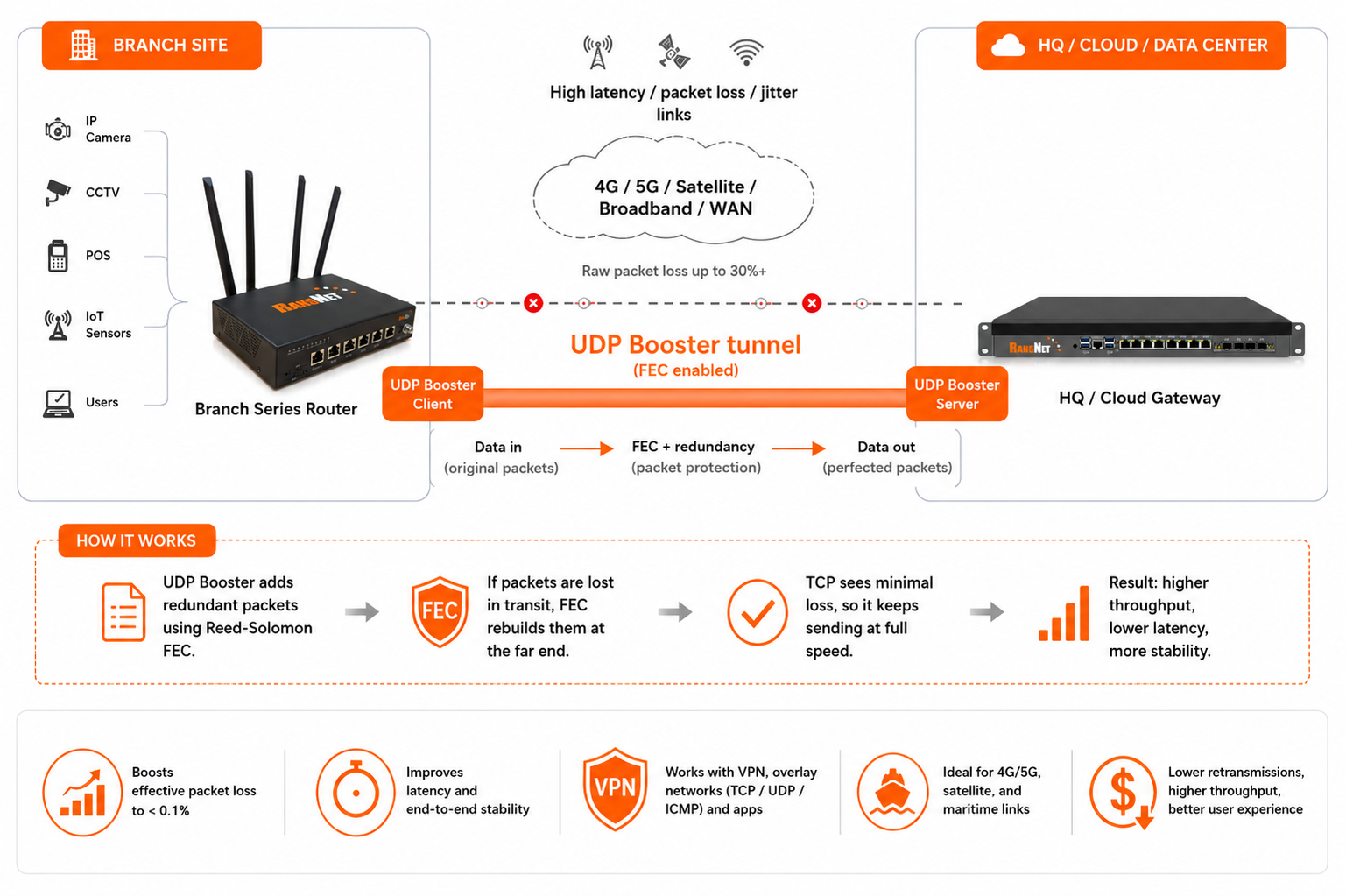

UDP Booster — Reed-Solomon forward error correction rebuilds lost packets, cutting effective packet loss on lossy 4G/5G and satellite links

How it fits

From the branch to the cloud

Branch devices connect through the all-in-one router, across a multi-WAN underlay and encrypted VPN overlay, to the RansNet gateway and mfusion.

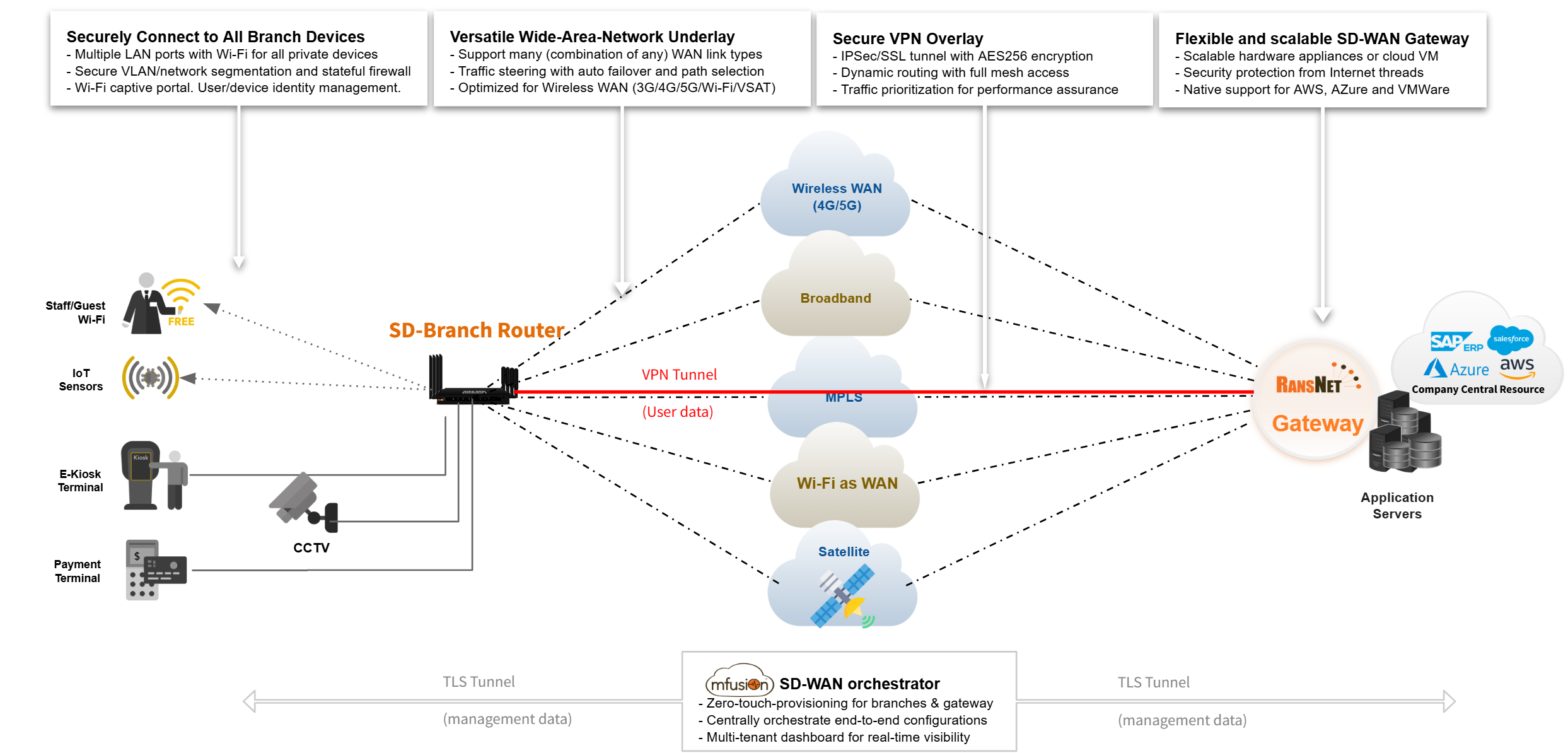

SD-Branch topology — branch LAN, Wi-Fi and IoT devices connect through the all-in-one branch router across a multi-WAN underlay and encrypted VPN overlay to the HQ/CMG gateway and mfusion

Models

Choose the right appliance

Branch and edge appliances at the spokes, high-capacity gateways at the hub — all running the same platform. Full specifications live on the products page.
