Products / mfusion Orchestrator

mfusion Orchestrator

One control plane for your entire edge network

mfusion gives enterprises, service providers, and system integrators one platform to provision, monitor, and manage RansNet SD-WAN routers, gateways, Wi-Fi networks, and IoT devices across thousands of distributed sites — cloud-hosted or fully on-premises.

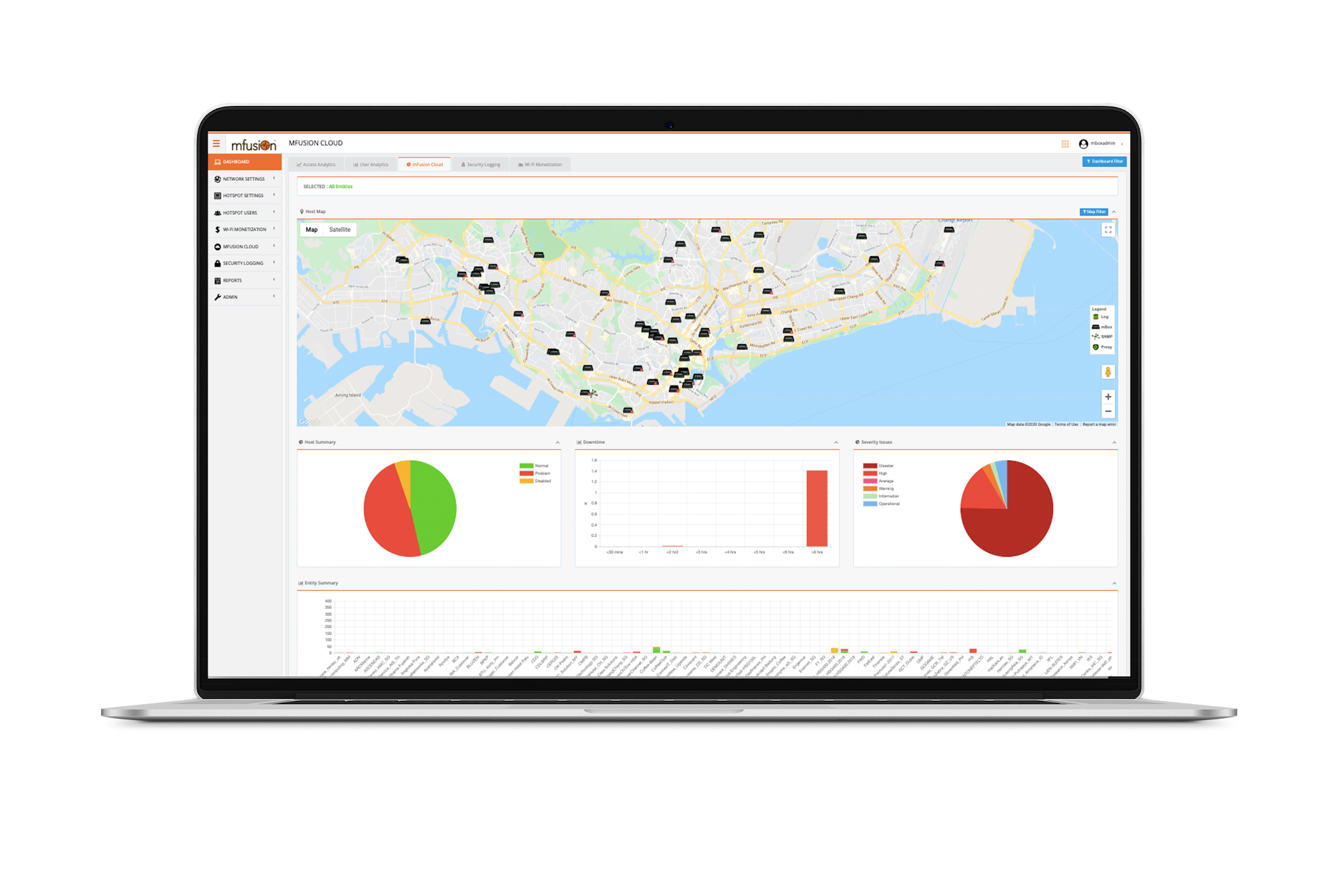

mfusion dashboard — fleet summary, site map, and device health across a distributed network

The Control Plane

One console for the whole fleet

Devices call home the moment they power on, so you provision, monitor, and operate every RansNet device — edge routers, gateways, access points, and IoT — from a single console. mfusion also monitors third-party devices over SNMP, ICMP, NetFlow, and MQTT for end-to-end visibility.

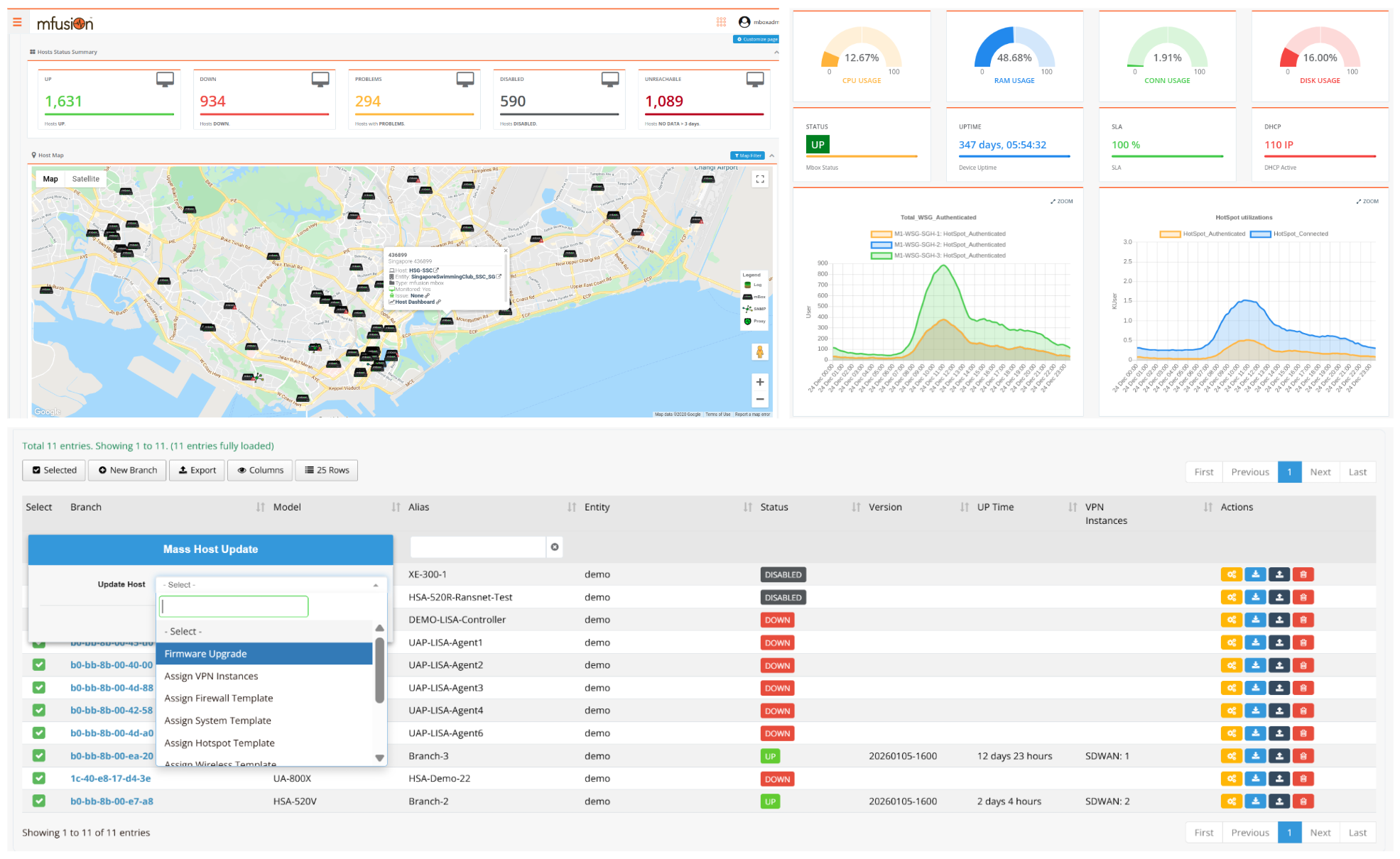

mfusion console — host status summary, resource gauges, site map, and a device fleet table with mass firmware and template actions

Core Capabilities

Everything you need to run a distributed network

Zero-touch provisioning

Devices call home the moment they power on. Pre-stage templates and bring new sites online remotely — no field configuration, no truck rolls.

Fleet management

Manage thousands of routers, gateways, access points, and IoT devices from one dashboard — config backup, remote reboot, and bulk actions.

Configuration templates

Standardize SD-WAN, VPN, firewall, Wi-Fi, captive portal, VLAN, and QoS settings, then apply them consistently across the whole fleet.

Real-time monitoring

Track device and network health, WAN status, VPN tunnels, wireless performance, clients, and traffic — with threshold alerts and scheduled reports.

Firmware lifecycle

Plan, audit, and roll out firmware and patches centrally, with staged upgrades across the fleet — no per-device access required.

Analytics & open APIs

Per-user usage analytics by app and category, NetFlow analytics and events, plus open REST, Syslog, NetFlow, and hotspot APIs to integrate networking into your own systems.

See mfusion in the docs →

Why It Matters

Why operators choose mfusion

Faster rollout

Pre-stage templates and bring new sites online without field configuration or truck rolls.

Lower operating effort

Monitor, patch, troubleshoot, and control the entire fleet remotely — no per-site visits.

Consistent policy

Apply SD-WAN, firewall, Wi-Fi, VLAN, QoS, and captive-portal policies uniformly across sites.

Better visibility

See device health, WAN links, VPN tunnels, users, traffic, and alerts — all from one place.

Local Survivability

Your network doesn’t depend on our cloud

mfusion is the control plane, not the data path. It configures and monitors your devices, but each site runs on its own — so a cloud outage or a lost connection never takes your network down with it.

Sites keep running

Configuration lives on each device and traffic never passes through mfusion. If the cloud is unreachable, routing, VPN tunnels, multi-WAN failover, firewall, QoS, and Wi-Fi carry on — and logged-in guests stay online.

Manage locally

Every router and gateway can be managed directly through its CLI over SSH or console. HotSpot gateways, mfusion, and mlog appliances also have a local web GUI.

Back in sync automatically

While a site is offline, only central changes and monitoring pause. When it reconnects, it picks up pending changes and resumes reporting — no manual recovery.

Or host it yourself

Run mfusion on your own servers, with a synchronized standby for high availability — no dependency on any vendor cloud.

SD-WAN Operations

Operate your SD-WAN from one screen

  • Live VPN topology and tunnel status across every site
  • Multi-WAN health, failover state, and link quality
  • QoS and traffic-steering policy, pushed by template
  • Gateway and branch availability at a glance

Explore the SD-WAN platform →

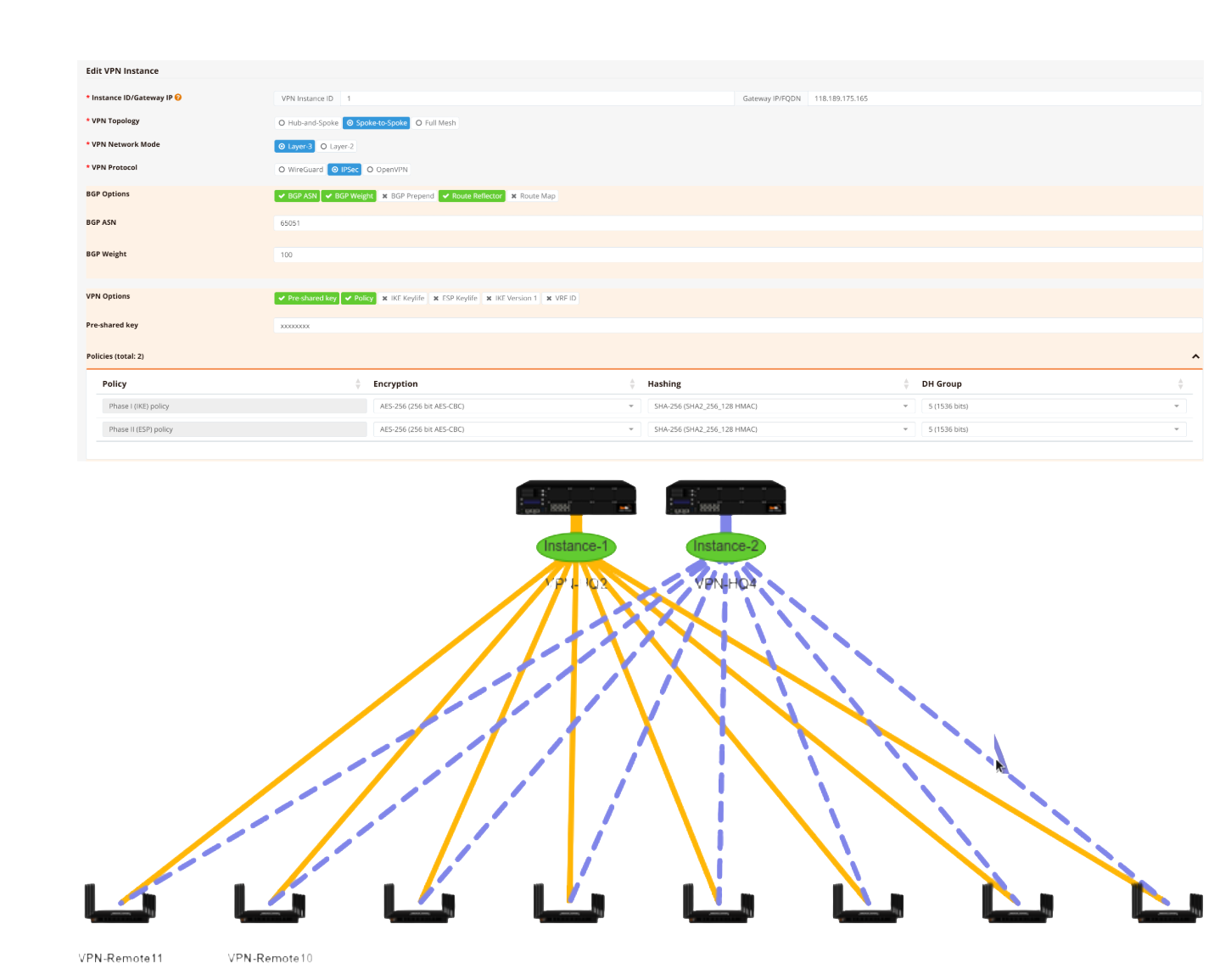

mfusion VPN orchestration — instance configuration with IPSec and BGP policy, plus a live hub-and-spoke tunnel topology with per-tunnel traffic

Guest Wi-Fi Operations

Manage guest Wi-Fi across every venue

  • Captive-portal and AAA status per site
  • Per-user and per-group access policies
  • Multi-site, multi-portal guest Wi-Fi visibility
  • User sessions, vouchers, and per-user usage analytics

Explore Guest Wi-Fi →

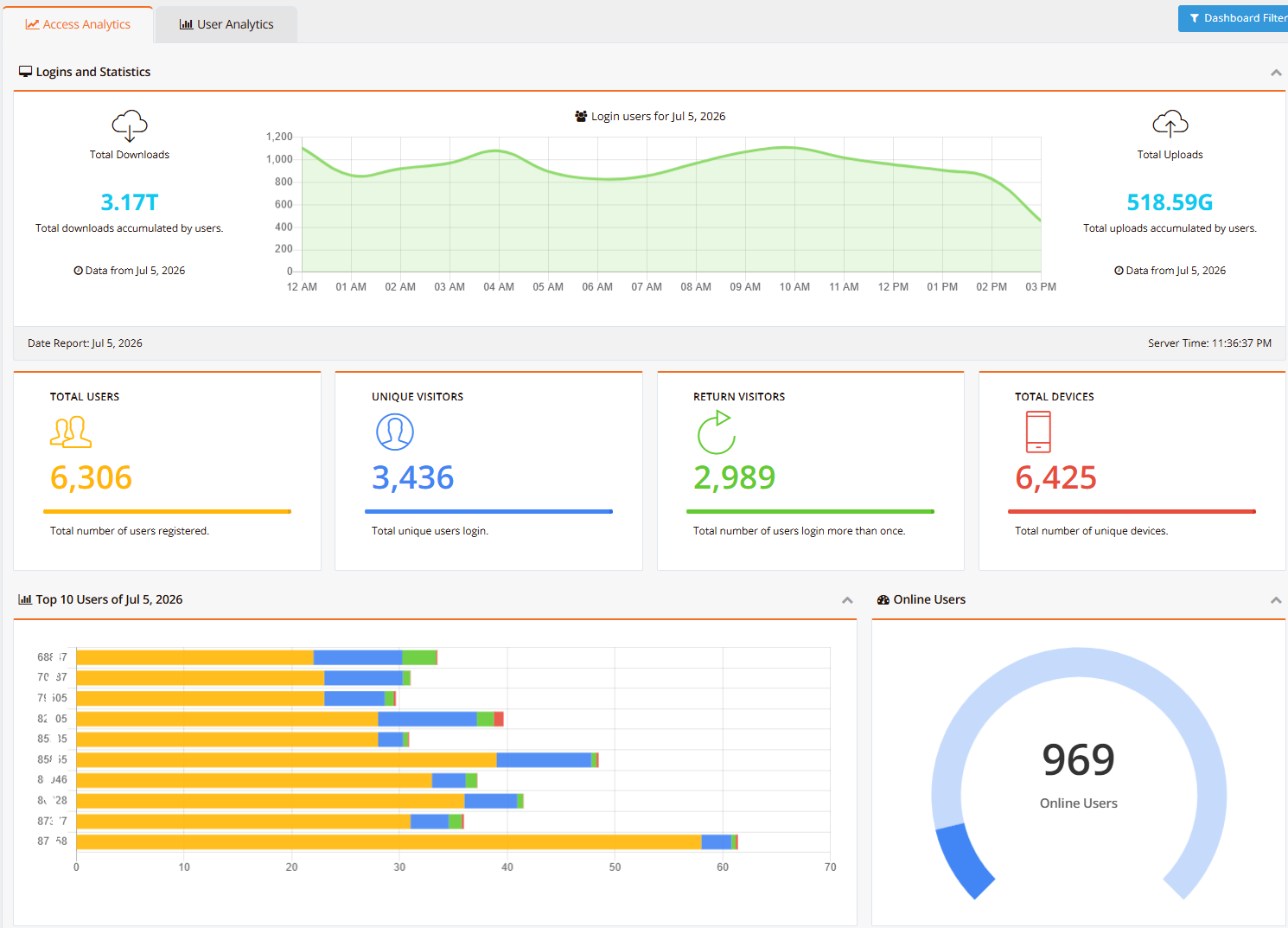

mfusion guest Wi-Fi analytics — login trends, total and unique visitors, devices, top users, and live online-user count

Wireless Monitoring

See every access point and client in real time

  • Live AP, SSID, and client counts, split across 2.4 GHz and 5 GHz
  • SSID and client distribution by band, channel, and hardware mode
  • Per-AP signal quality — noise floor, transmit power, data rate, and channel width
  • Per-client RSSI and SNR to surface weak connections and roaming issues

See wireless monitoring in the docs →

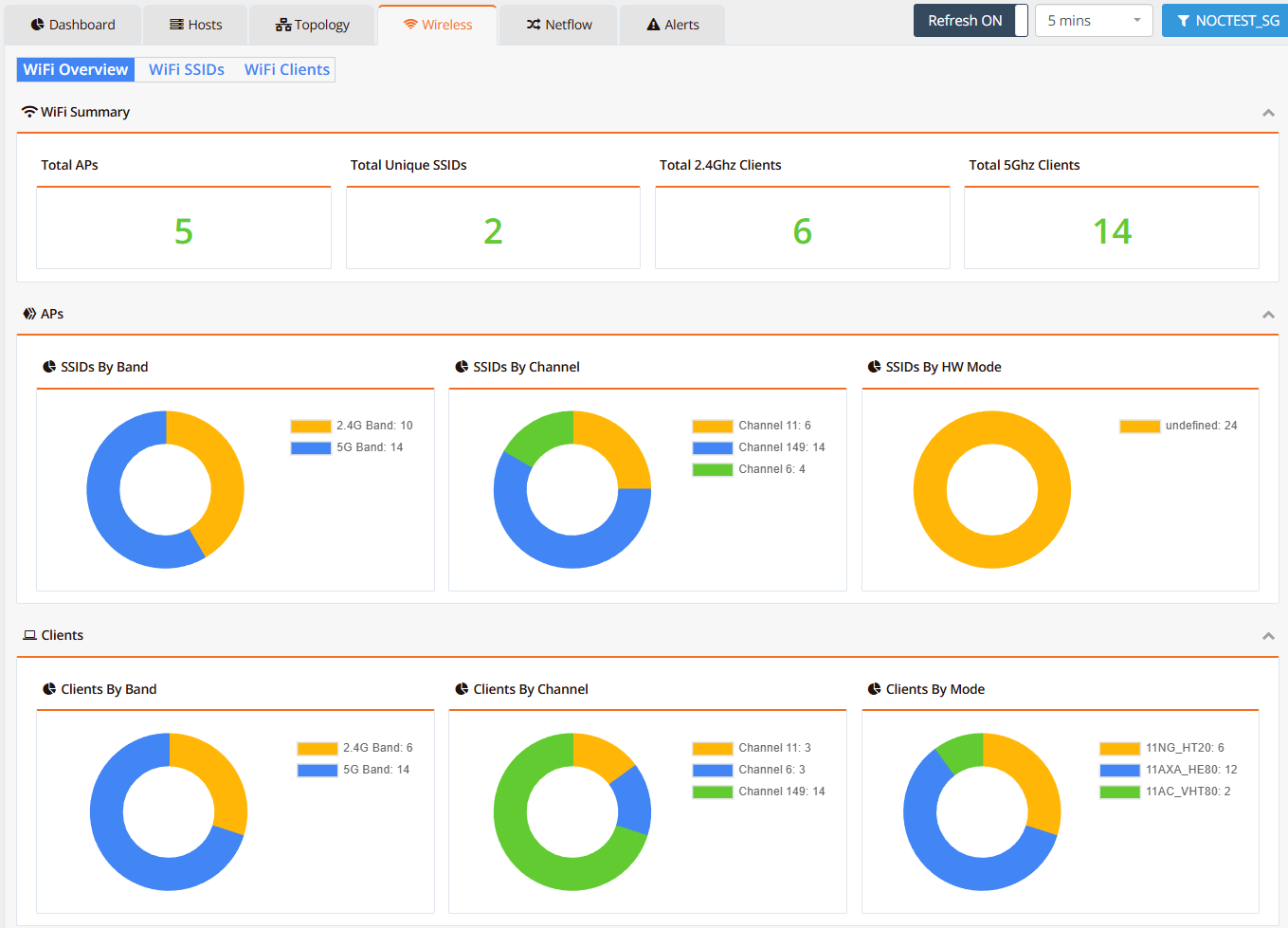

mfusion wireless dashboard — AP, SSID, and client summary with distribution by band, channel, and hardware mode

Usage Analytics

Know who used the bandwidth — and on what

RansNet routers report every guest's, crew member's, and device's data usage to mfusion, down to each site and app they used. See what fills your WAN and satellite links, and settle usage questions with evidence instead of guesswork.

  • Per-user and per-device usage across every site, down to each destination
  • Apps and categories — social media, video, calls, updates — with drill-down to the users behind them
  • Evidence for data-usage and billing disputes: one user's destinations, exportable as CSV
  • No sampling and no extra probes; up to 45 days of history; tenant-scoped and audit-logged for privacy

See usage analytics in the docs →

mfusion usage analytics — download, upload, clients and destinations, top categories and apps, and the top users and destinations across sites

Observability

See every flow, across every site

You can't manage what you can't see. mfusion exports NetFlow from every appliance to a built-in collector, turning raw traffic into per-application and per-host analytics — plus a SOC dashboard that flags scanning, brute-force, and data exfiltration, with no separate probes or SPAN taps.

  • Real-time per-application and per-host traffic breakdowns
  • Threat scoring with scanner, fan-out, brute-force, and exfil detection
  • Spot bottlenecks, heavy talkers, and anomalies at a glance
  • NetFlow export plus a built-in collector — no extra probes or hardware

See NetFlow monitoring in the docs →

mfusion NetFlow observability — threat score, application and threat categories, scanner and fan-out detection, and brute-force attempts across sites

Audit & Accountability

Know who changed what, and when

Every action taken through mfusion is recorded — admin logins, per-device configuration changes, and the exact commands executed. A complete change history with timestamps, usernames, and source IPs gives you the accountability audits and investigations demand.

  • Admin audit trails — logins, OTP validation, and system events with timestamp, username, and source IP
  • Operation logs — every device configuration change, who made it, and whether it succeeded
  • Change logs — full command history and step-by-step configuration detail
  • Ready evidence for compliance, accountability, and troubleshooting

See mfusion security in the docs →

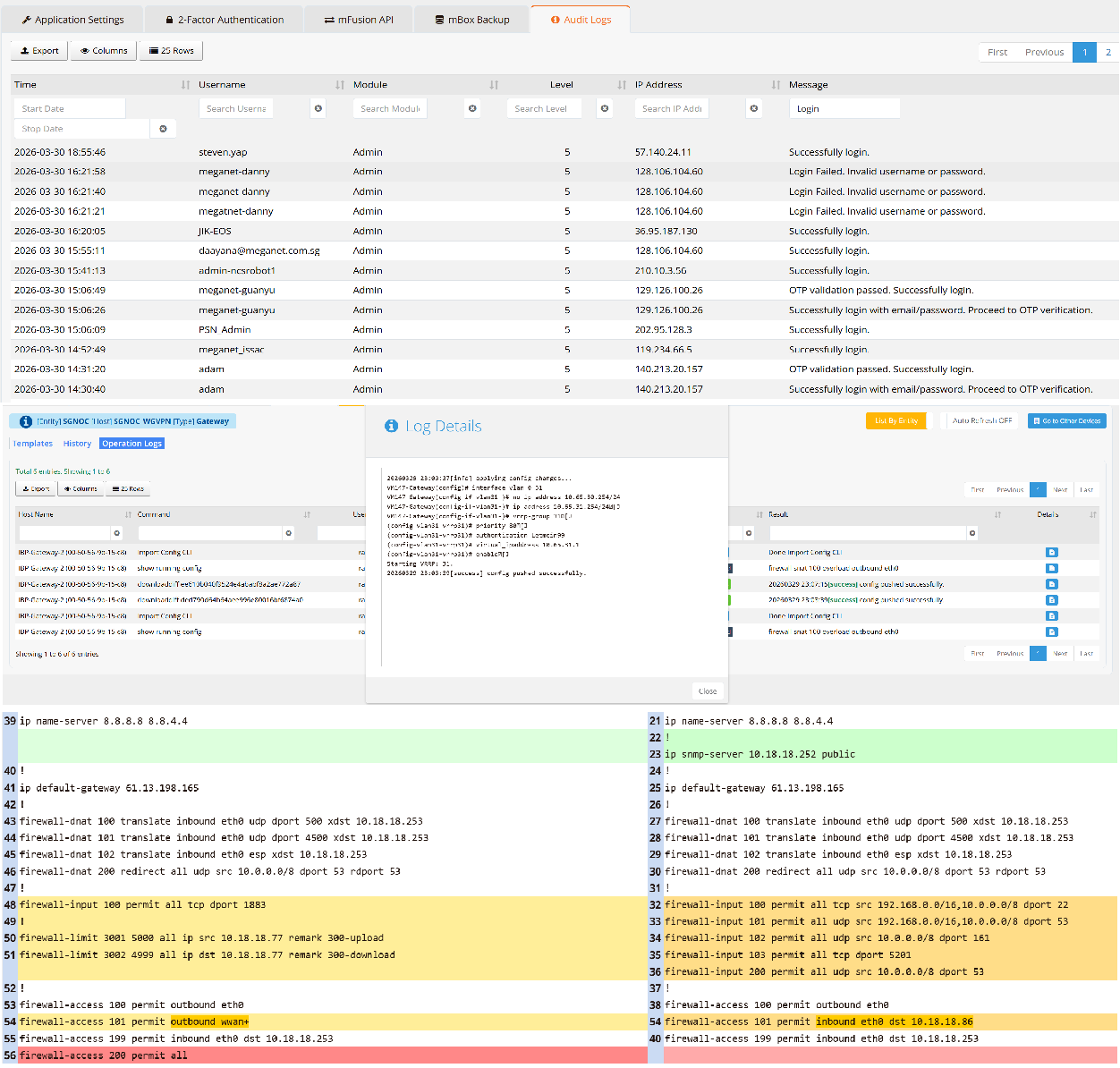

mfusion audit trail — admin login and OTP events, per-device operation logs, log detail, and side-by-side configuration change comparison

Security & Compliance

Secure by design

Secure by default

Devices open an outbound-only TLS session to mfusion — no inbound ports are exposed. Remote access features remain disabled unless explicitly enabled by policy.

RBAC & multi-tenancy

Granular role-based access with strict tenant isolation — service providers give each customer controlled visibility without exposing others’ data.

Encrypted device API

Secure device communication over TLS, with each device’s identity bound to its serial number, embedded certificates, and hardware identifiers.

MFA & single sign-on

Email- and SMS-based OTP for admin logins, plus SAML and LDAP integration for enterprise single sign-on and directory-backed MFA — layered on role-based access, with every login recorded in the audit trail.

Backed by RansNet’s ISO/IEC 27001-certified information security management system.

Deployment

Cloud-hosted or fully on-premises

Cloud-hosted

Multi-tenant SaaS on scalable, high-availability infrastructure — isolated per customer, with nothing to install.

On-premises

A dedicated hardware or virtual deployment for customers who require private infrastructure, full data control, and compliance.

See mfusion in action

Tell us about your device fleet, sites, WAN links, and operating model, and we'll show how mfusion helps you provision, monitor, and manage it all from one console.

Request a Demo
