Products

One platform, from branch to cloud

A complete portfolio of SD-WAN appliances, captive-portal gateways, access points, and cloud orchestration — all managed through mfusion. Full technical specifications are available in the product documentation.

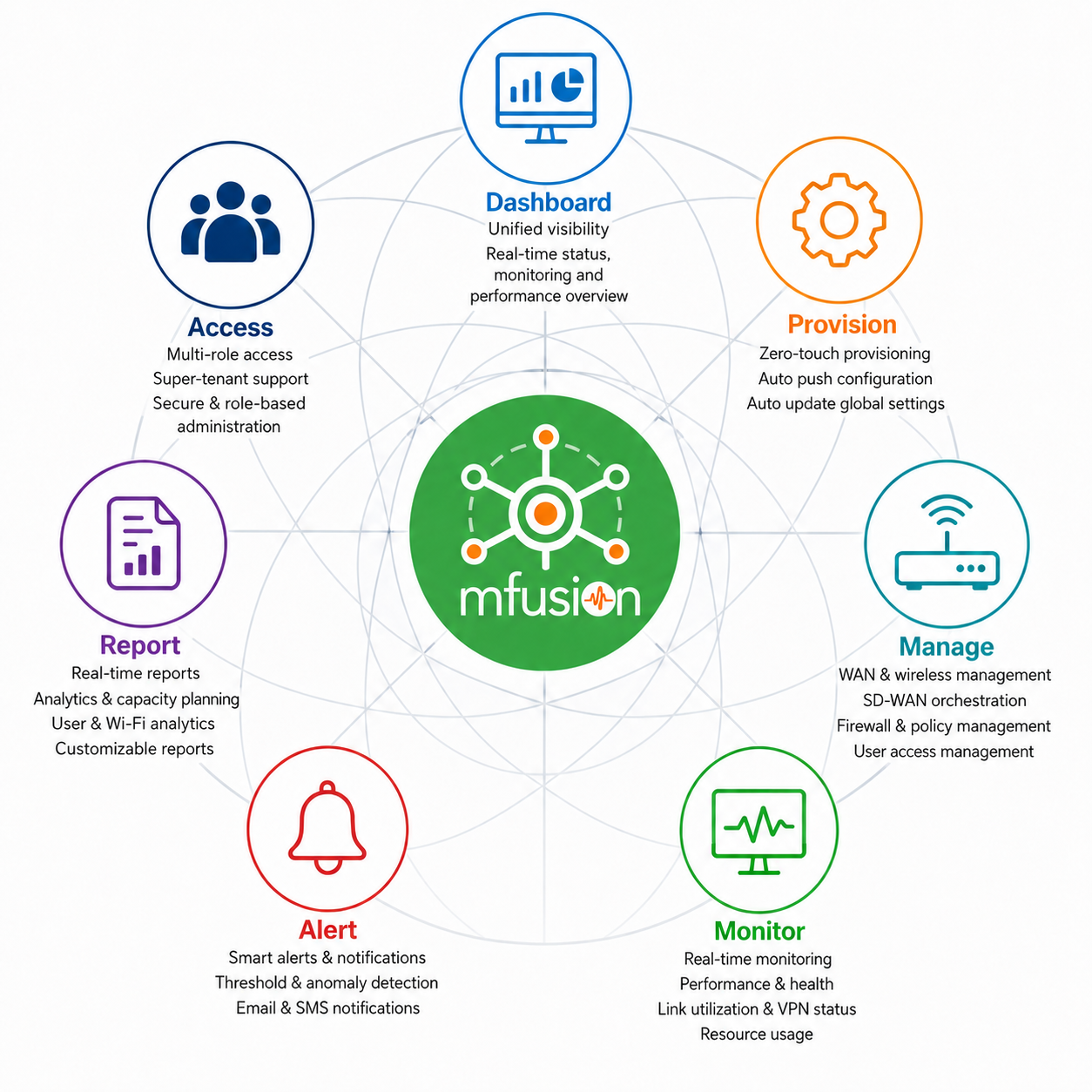

mfusion — one platform managing RansNet SD-WAN, Wi-Fi, and IoT devices

mfusion — SD-WAN Orchestrator

The central management platform for every RansNet device — cloud-hosted or on-premises. Zero-touch provisioning, centralized monitoring, template-based configuration, VPN orchestration, multi-tenant access, and fleet-wide firmware management. Everything is programmable through open REST, Syslog, NetFlow, and hotspot APIs — so you can integrate networking into your own systems. Explore mfusion →

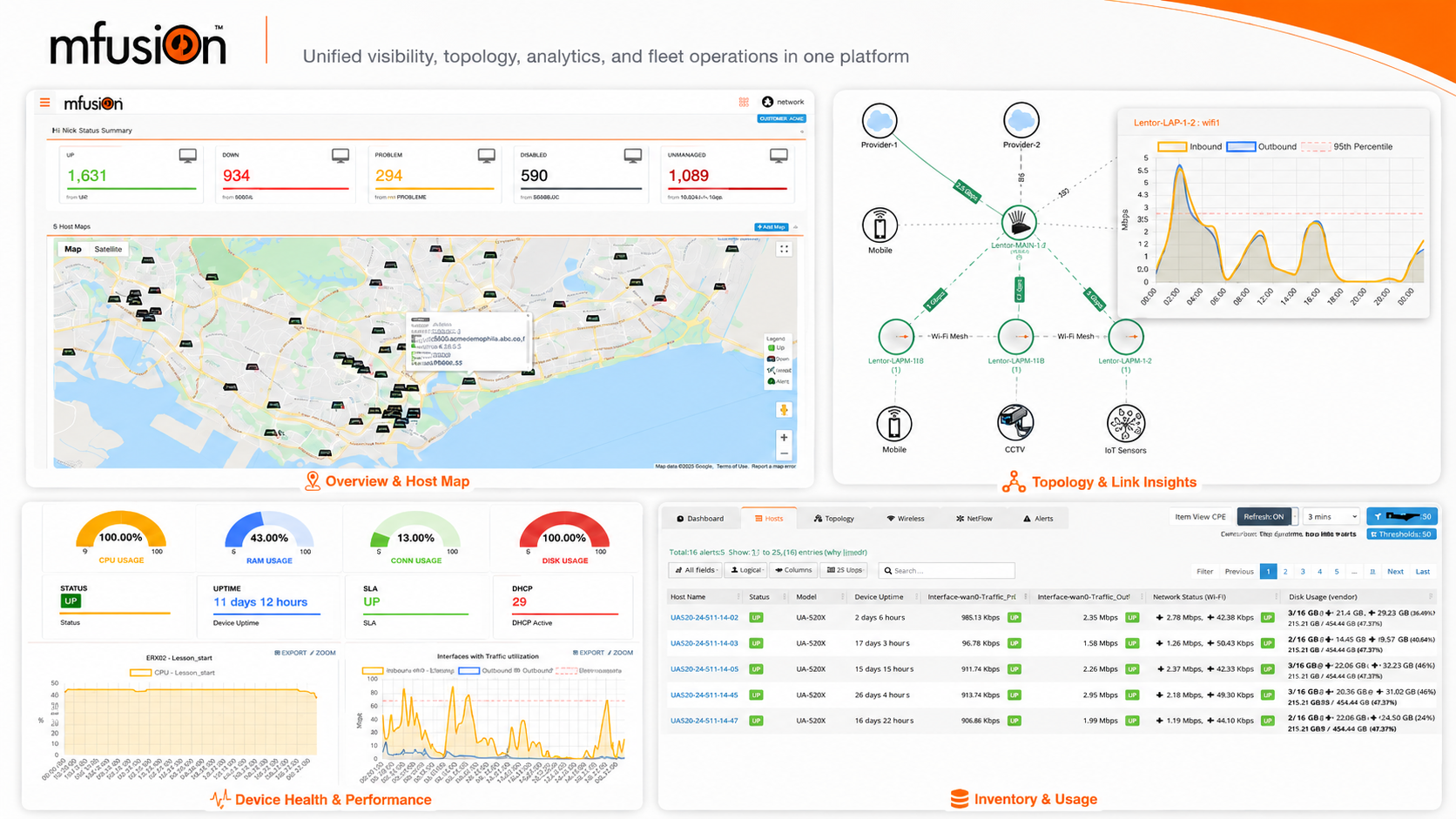

mfusion dashboard — centralized SD-WAN orchestration, monitoring, and multi-tenant management

Branch Routers (mbox)

WAN connectivity, routing, firewall, VPN, and Wi-Fi at every site. Explore the SD-WAN platform →

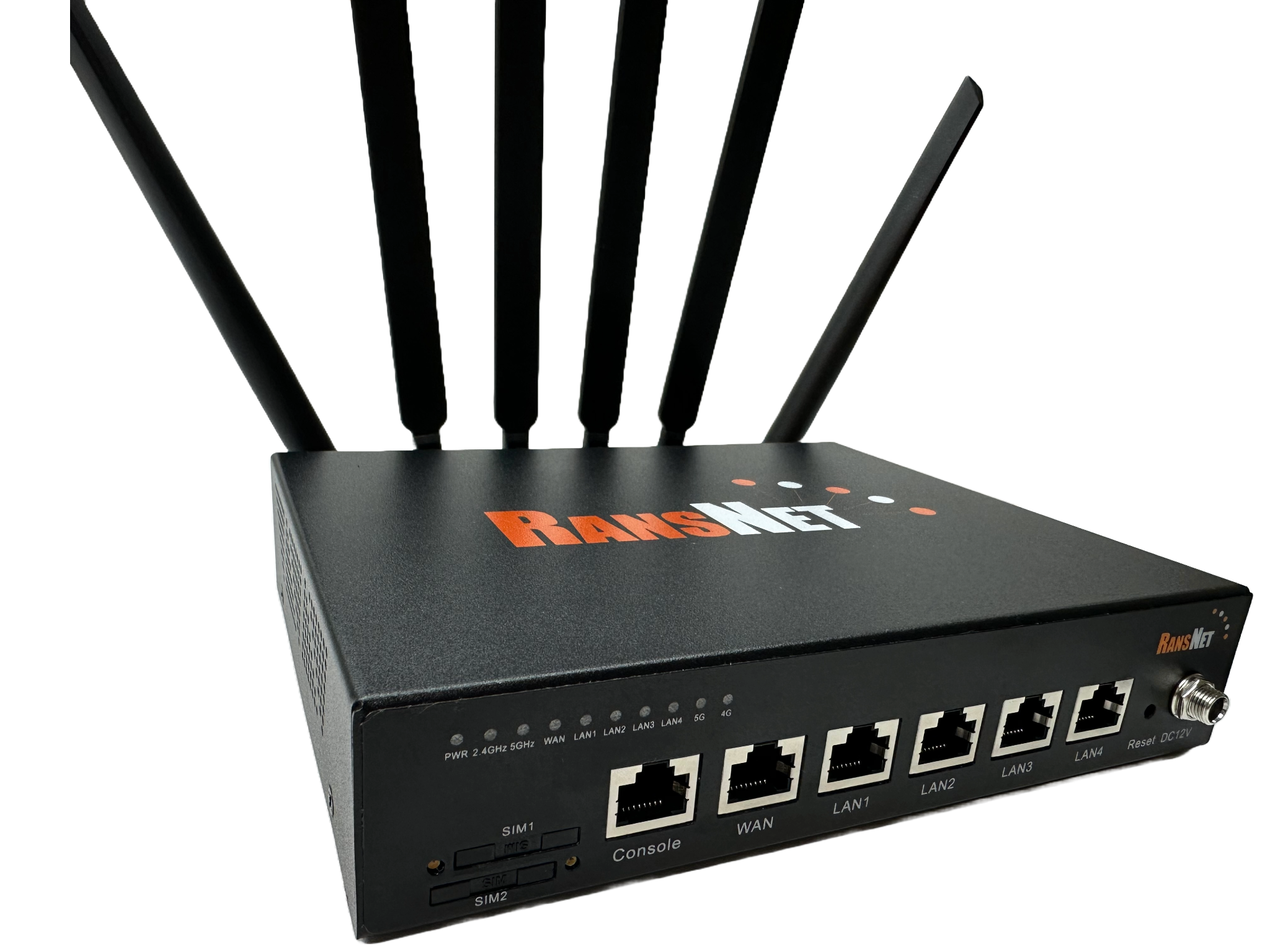

UA-520

UA-520

5G branch router with Wi-Fi 6

5G NSA/SA (up to 3.4 Gbps DL)
5 × GbE configurable WAN/LAN
Wi-Fi 6 (AX3000)
Up to 100 devices

Best for: Enterprise branch, FWA, IoT

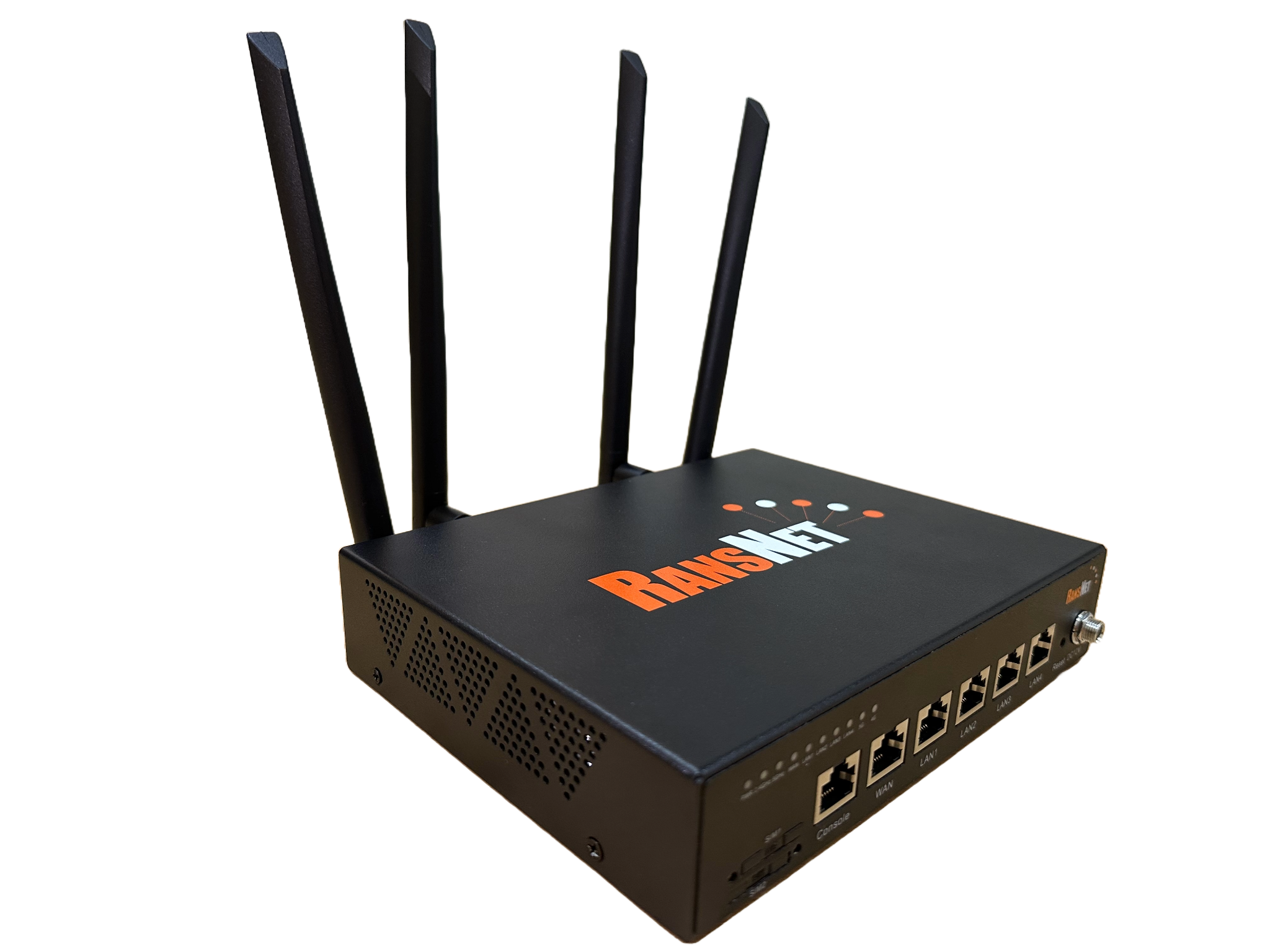

HSA-520

HSA-520

4G branch router with Wi-Fi 6

4G LTE Cat 4, dual-SIM
Up to 6 WAN links
Wi-Fi 6 (AX3000)
1 Gbps firewall throughput

Best for: Enterprise branch, retail, 4G backup

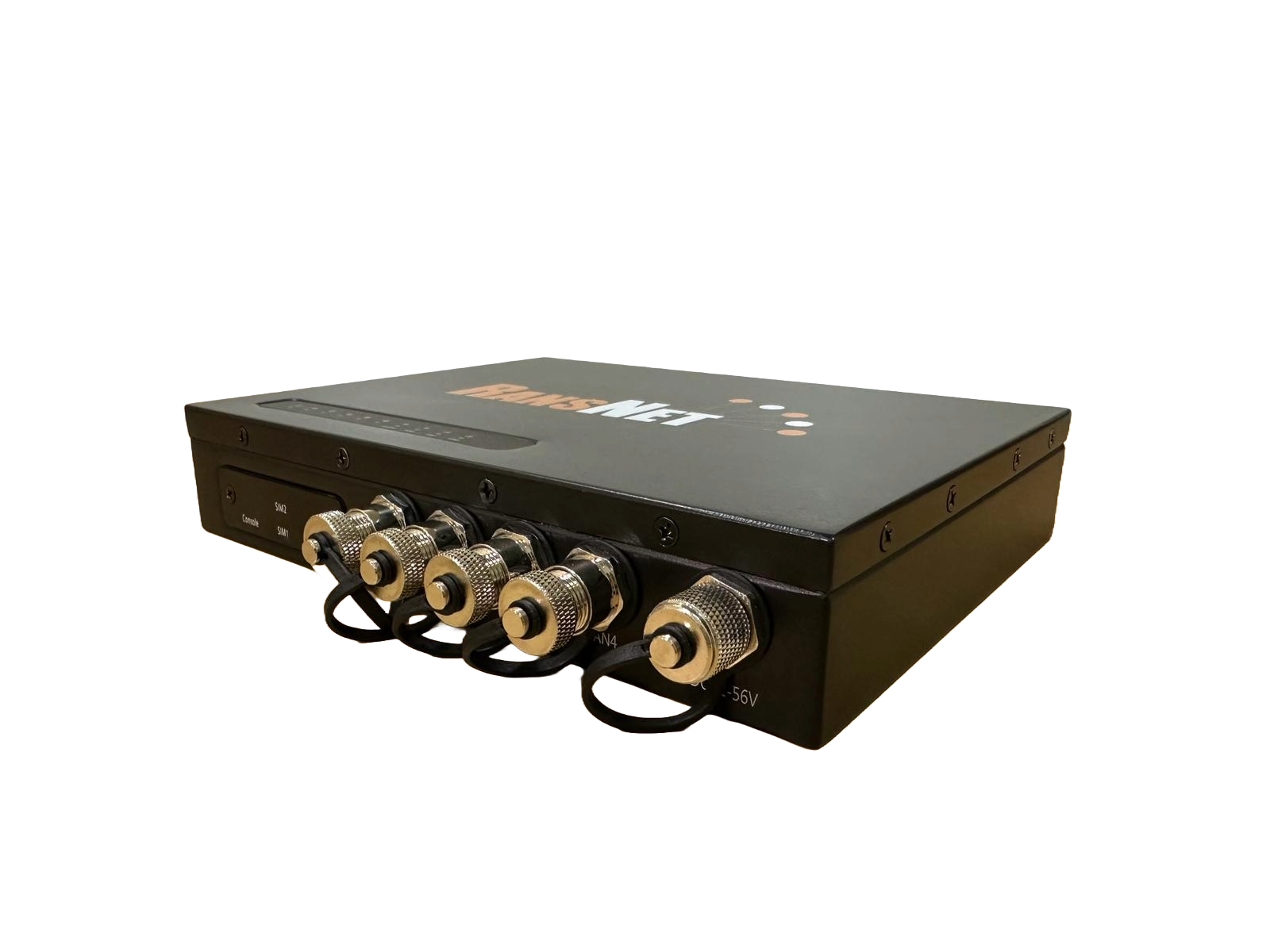

UA-800

UA-800

Industrial & vehicle-grade 5G

5G NSA/SA, dual-SIM
GNSS/GPS, BLE, MQTT broker
M12 ports + ignition sensing (M)
Up to 200 devices, IP65 (M)

Best for: Industrial IoT, fleet & mobility, FWA

Datasheets: UA-800M · UA-800NR · UA-800X

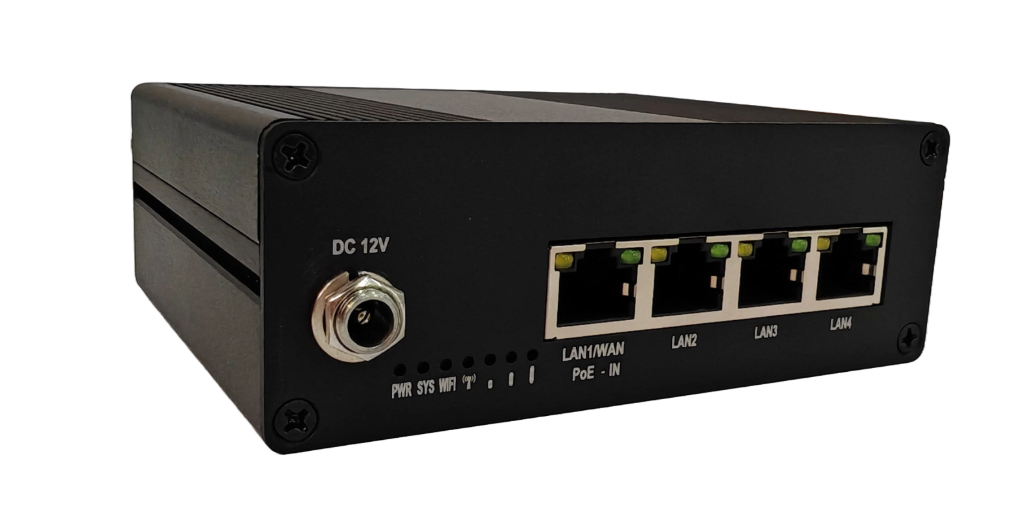

XE-300

XE-300

Ultra-compact industrial router

4G LTE or 5G RedCap
1 × FE WAN + 3 × FE LAN
<200g, 115×87×40mm
−30°C to 70°C

Best for: Harsh environments, machine-mount IoT

SD-WAN Gateways (CMG Series)

The hub of a hub-and-spoke SD-WAN — deployed at the data center or HQ, as a hardware appliance or virtual machine. Explore the SD-WAN platform →

CMG-1500 / 2000

CMG-1500 / 2000

Business and enterprise tiers — 1.5–10 Gbps routing, up to 500 users.

CMG-3000

CMG-3000

Enterprise 1U — 10 Gbps, 1M connections, optional redundant PSU.

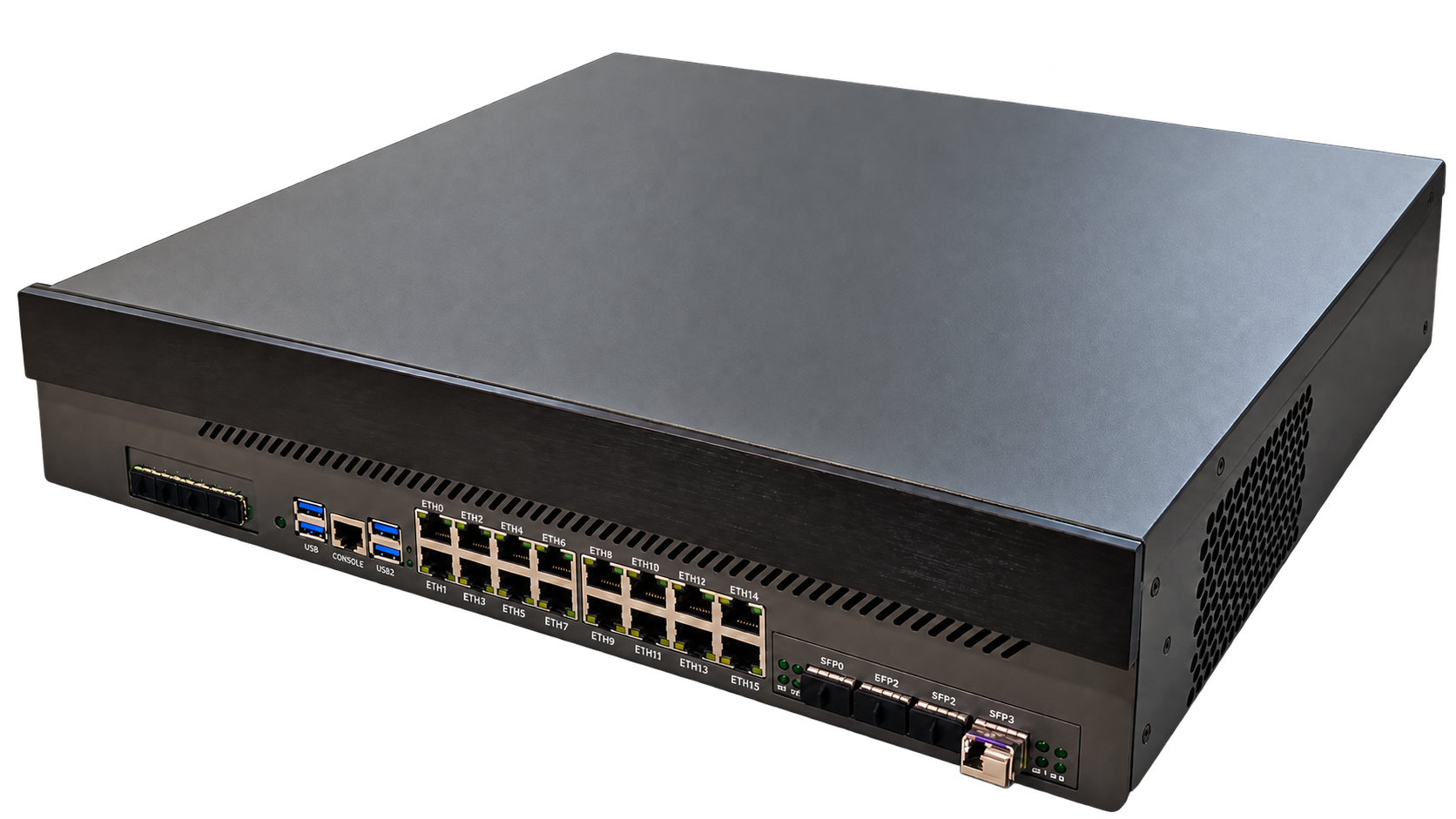

CMG-5000

CMG-5000

Carrier-grade 2U — 10 Gbps firewall, 3,000 users, redundant PSU included.

Guest Wi-Fi & Access Points

Captive-portal gateways and enterprise access points for managed guest Wi-Fi. Explore Guest Wi-Fi →

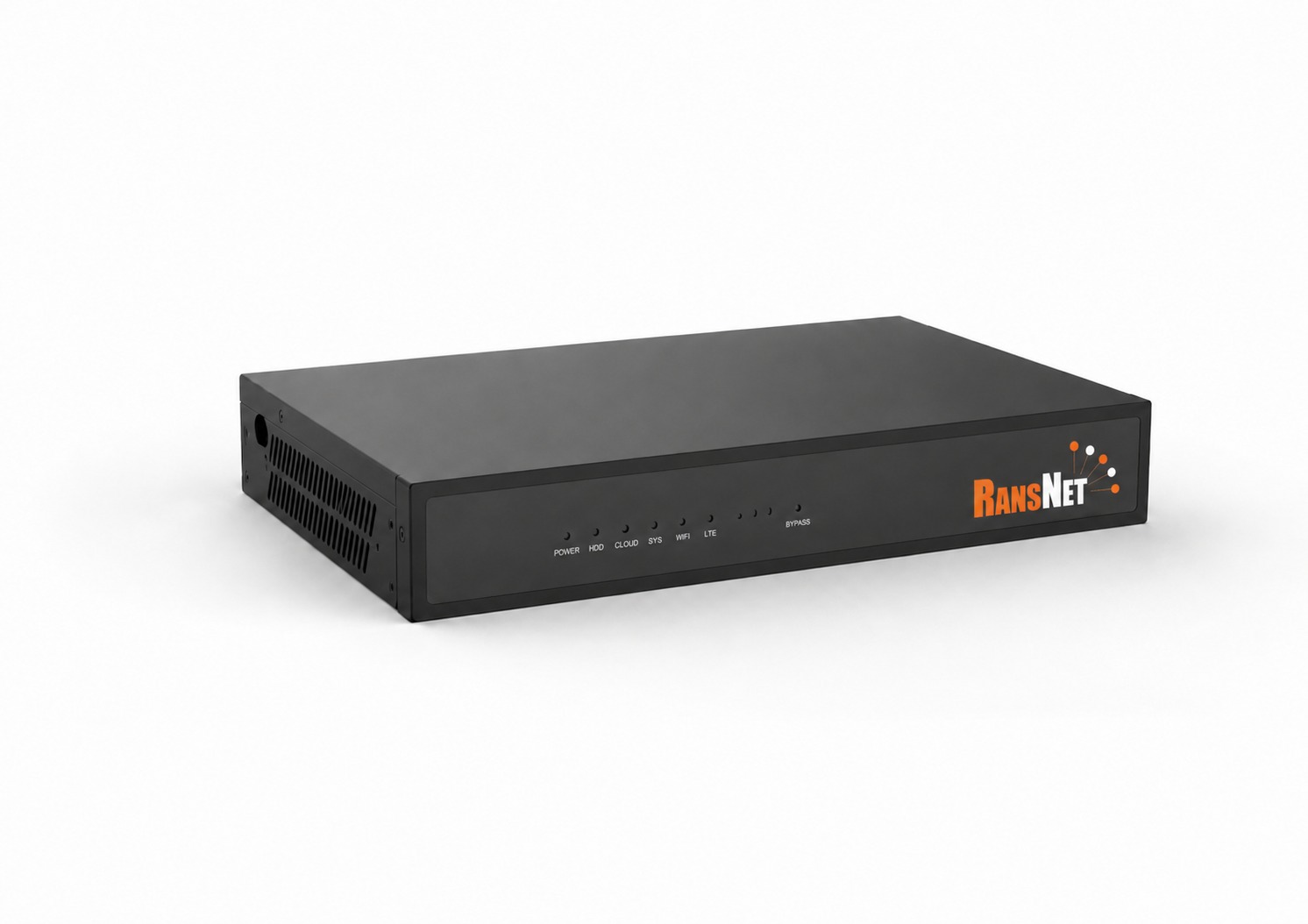

HSG Series

HSG Series

Captive portal gateway & AP controller

Full portal CMS, templates, and ad engine
SMS, email, social, RADIUS, PMS, payment-gateway auth
Scales from HSG-200 (200 devices) to HSG-25000 (25,000 devices)

Best for: Hotels, malls, F&B, schools, hospitals

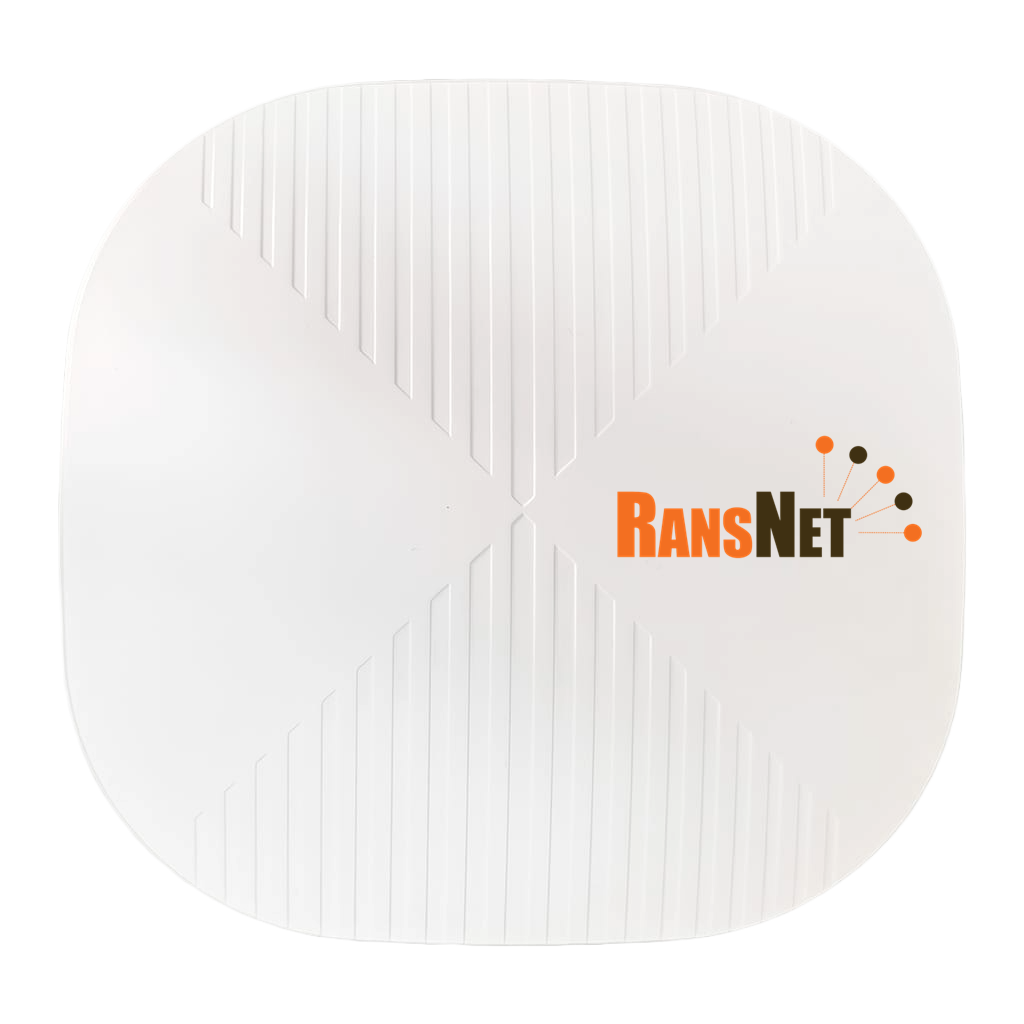

UAP-520

UAP-520

Enterprise Wi-Fi 6 access point

802.11ax (AX3000), 2.4/5GHz
Up to 128 clients
PoE 802.3af or DC 12V
IP67 indoor/outdoor

Best for: Coverage extension, mesh, outdoor Wi-Fi

IoT — Smart Energy Series

Wi-Fi (MQTT) energy devices that report to a RansNet edge router and up to mfusion — for metering, monitoring, and remote power control across sites.

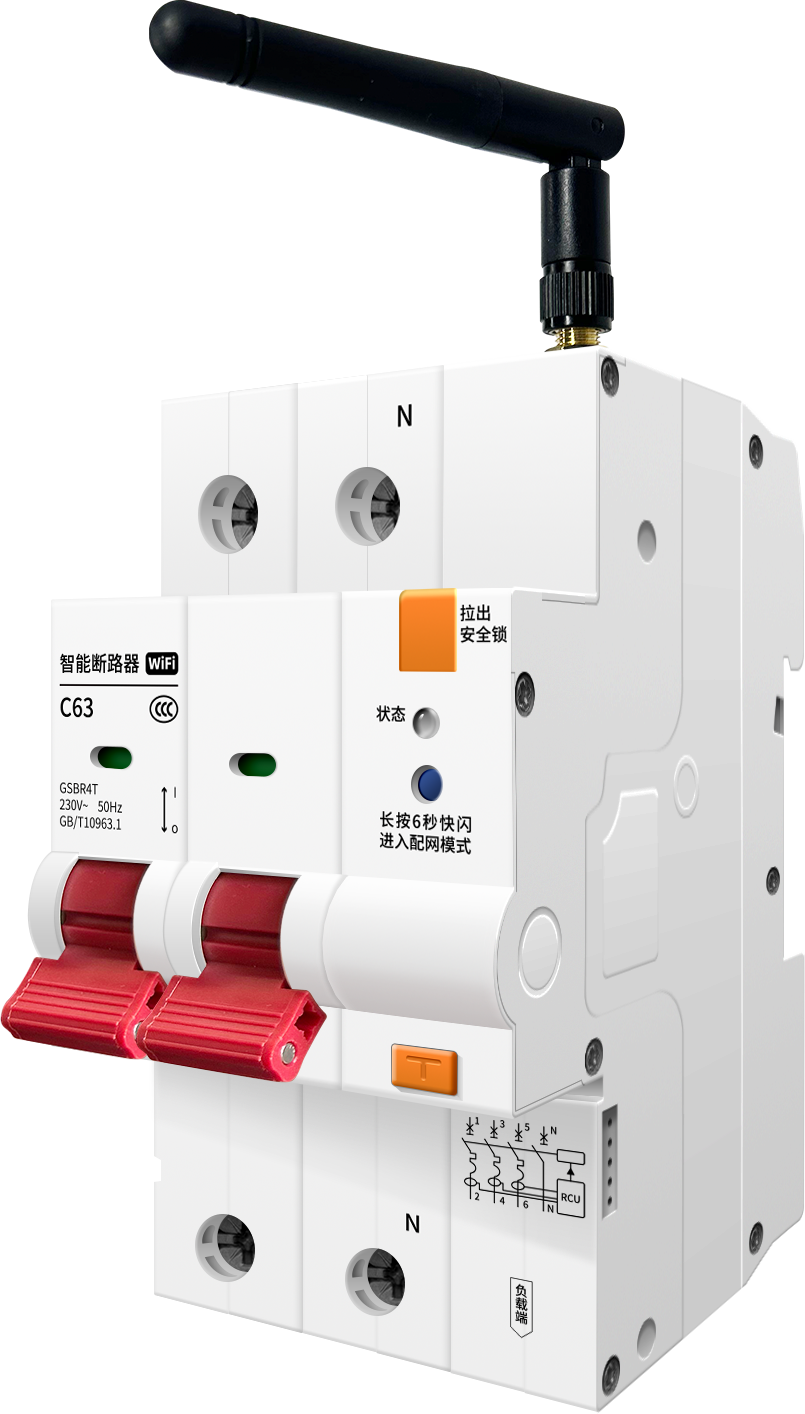

SE-BR2T

SE-BR2T

Smart circuit breaker (2-pole)

Remote switching + energy metering (V/A/W/kWh)
Leakage, over/under-voltage, overcurrent & temperature protection
AC230/400V, 10–63A configurable, 6kA
DIN-rail; Wi-Fi 2.4GHz (MQTT/TCP)

Best for: Distribution panels, EV charging, solar

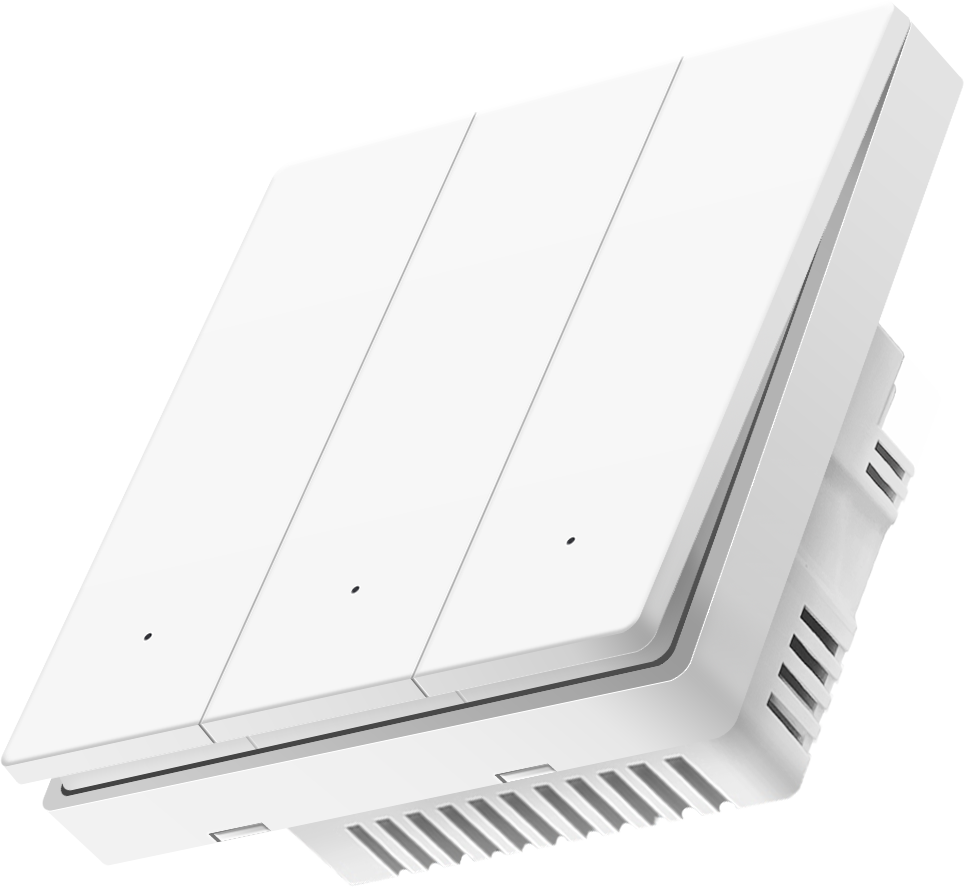

SE-CW3P

SE-CW3P

3-channel Wi-Fi smart switch (metering)

Per-channel remote ON/OFF
Energy metering + scheduled/countdown tasks
100–250 Vac, 10A, 2400W (800W/channel)
Also in 1/2-channel (SE-CW1P / SE-CW2P)

Best for: Multi-load switching, facility control

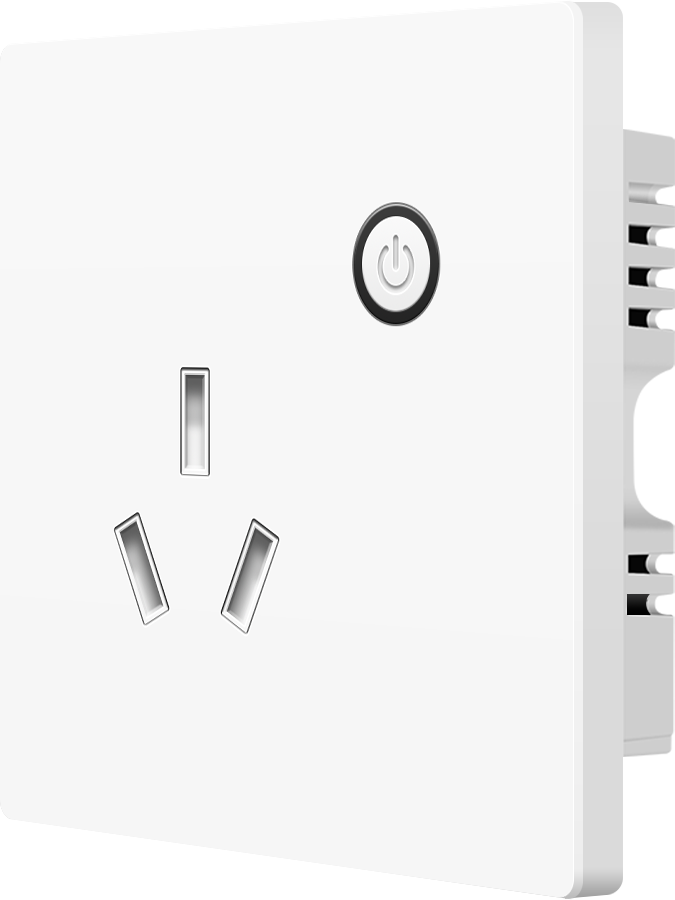

SE-PW1B2

SE-PW1B2

Smart power monitoring socket

Remote ON/OFF
Real-time V/A/W/kWh metering
85–265 Vac, 10A (16A relay)
Wi-Fi 2.4GHz (MQTT/TCP)

Best for: Appliance & IT-equipment monitoring

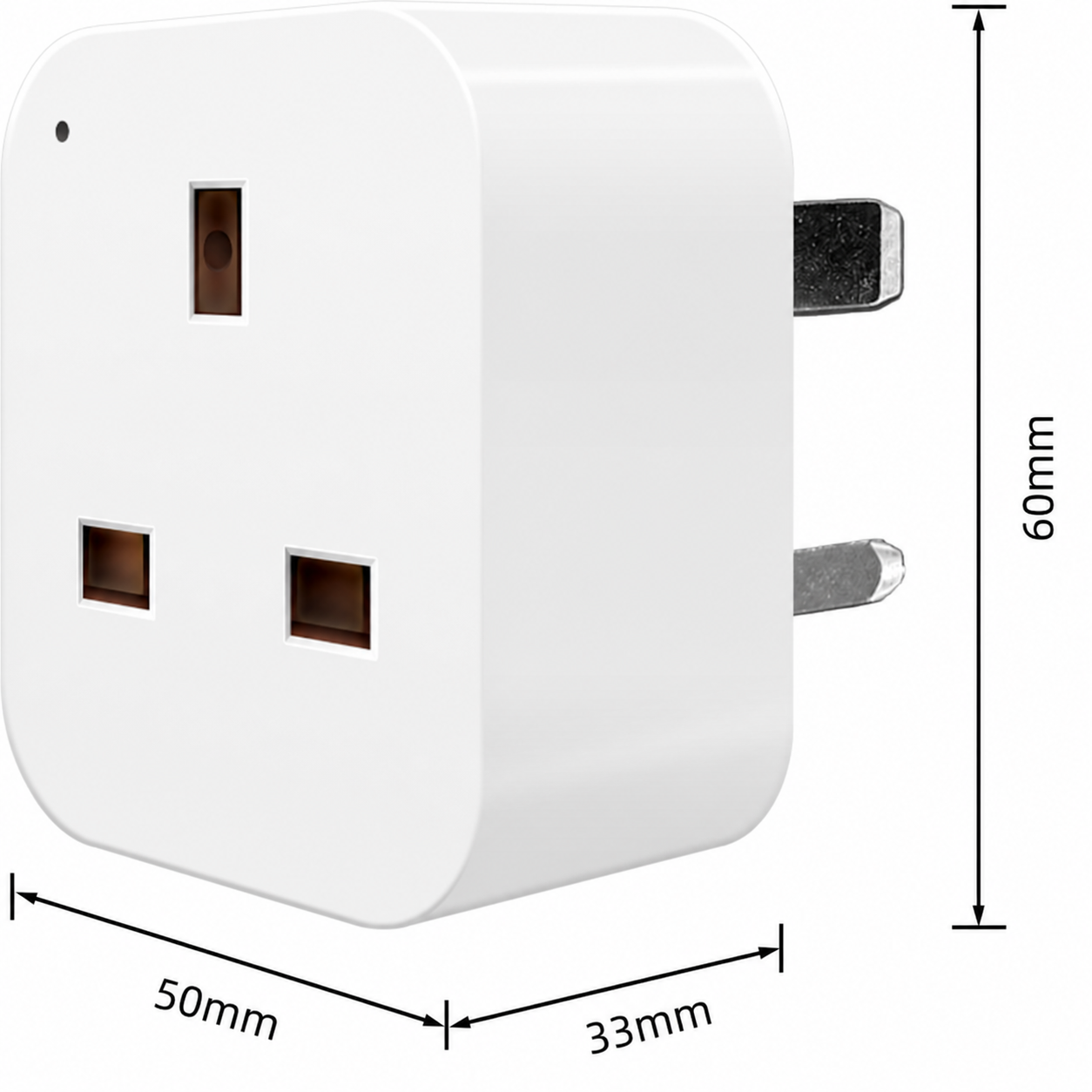

SE-PM1B

SE-PM1B

Smart plug (UK / US type)

Remote ON/OFF + real-time current detection
Power-off memory, timed energy reporting
100–250 Vac, 10A
UK (SE-PM1B-ES) & US (SE-PM1B-US) variants

Best for: Plug-in appliance switching & metering

How IoT integration works →

Accessories

Antennas and add-ons to extend cellular and Wi-Fi reach.

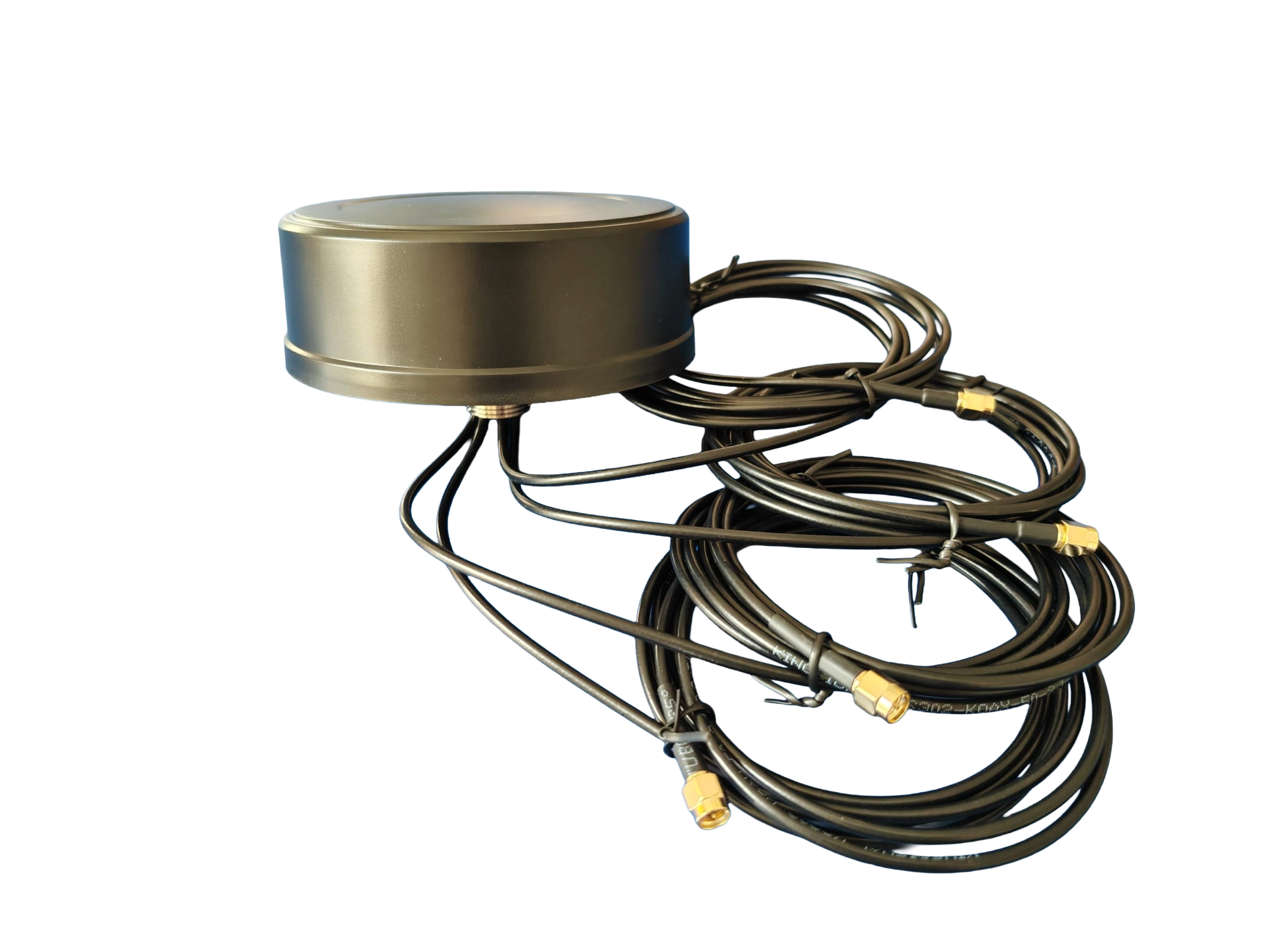

YB0007AA

YB0007AA

4G/5G MIMO antenna box

Compact IP67 puck with 4× SMA connectors, 700–5000 MHz — an external cellular upgrade for UA-520 and HSA-520 deployments.

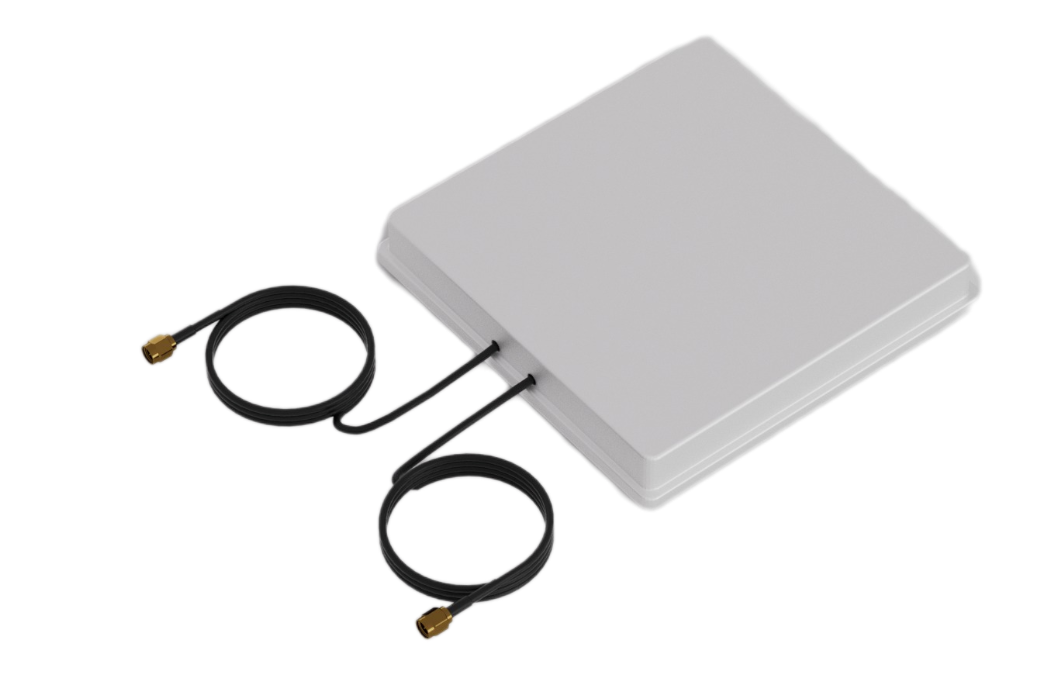

ANT-520D

ANT-520D

High-gain directional Wi-Fi antenna

Outdoor flat-panel, 10/12 dBi, up to 800 m for PtP/PtMP links; dual-polarization, IP65.

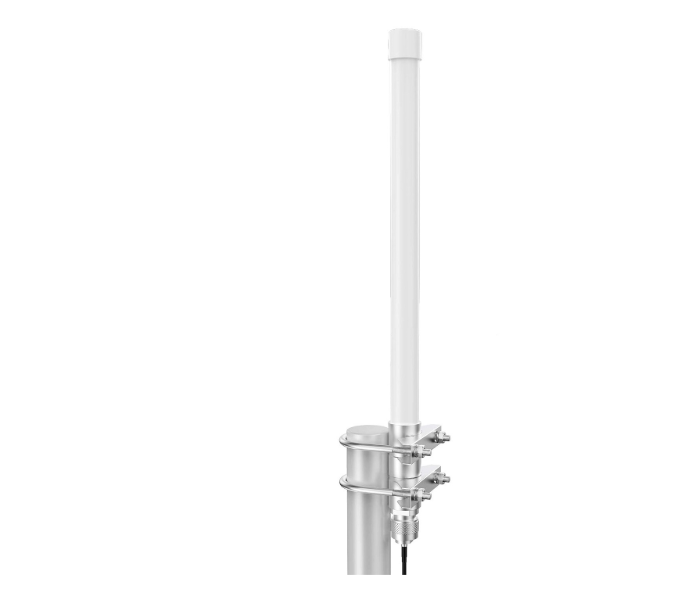

ANT-520M

ANT-520M

Omnidirectional Wi-Fi antenna

Outdoor monopole, 6/8 dBi, 360° coverage up to 300 m; IP67, mesh-optimized.

How RansNet Compares

More than SD-WAN. More than a 5G router.

Traditional SD-WAN leaves Wi-Fi, security, and cellular to other vendors; plain 5G routers just hand you a connection. RansNet integrates the whole stack into one appliance, managed from a single cloud.

	Traditional SD-WAN	Other 5G routers	RansNet
SD-WAN routing & failover	Yes	Limited / none	Yes — multi-WAN bonding, PBR, dynamic routing
Native 4G/5G	External add-on	Integrated SoC modem	Dedicated modem — higher performance
Wi-Fi 6 & captive portal	Separate system	Rare	Built-in Wi-Fi 6, portal & AAA (HSG)
Firewall & security	Separate appliance	Basic	Built-in firewall, NAC & web filtering
IoT & edge	Not included	Rare	Built-in MQTT broker, BLE / Z-Wave
Traffic visibility	Separate tools	Basic	Built-in NetFlow analytics
Central management	Multiple consoles	Per-device / basic	Single pane (mfusion) with zero-touch provisioning
Deployment	Vendor cloud only	Standalone	Cloud or fully on-premises (mfusion)
Total cost of ownership	Higher	Low upfront	Lower — one box, one platform
